High Pressure Nitrogen Regulator - WT-304-210M

High Pressure Nitrogen Regulator

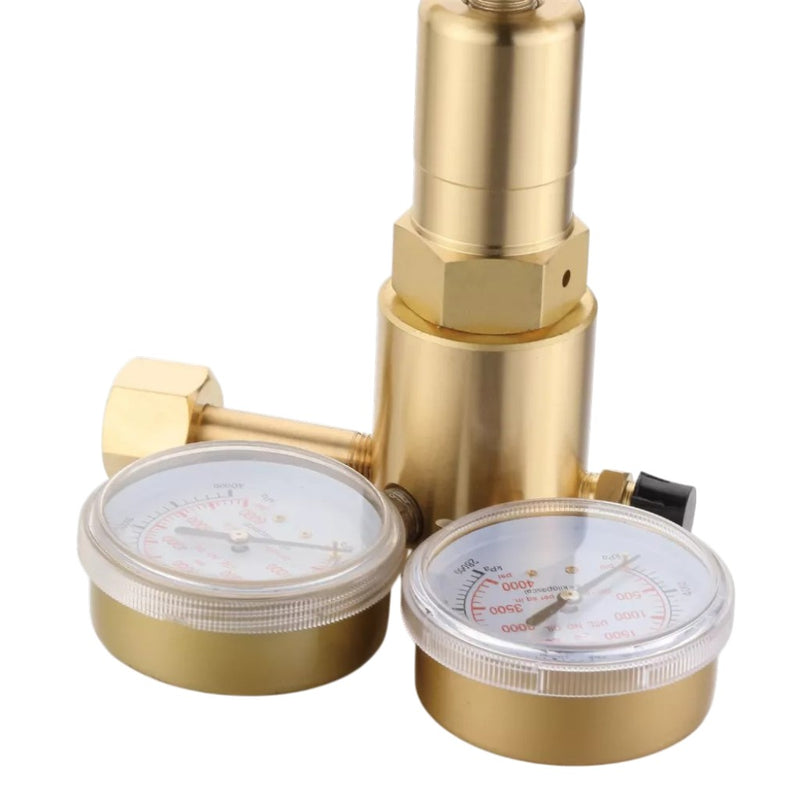

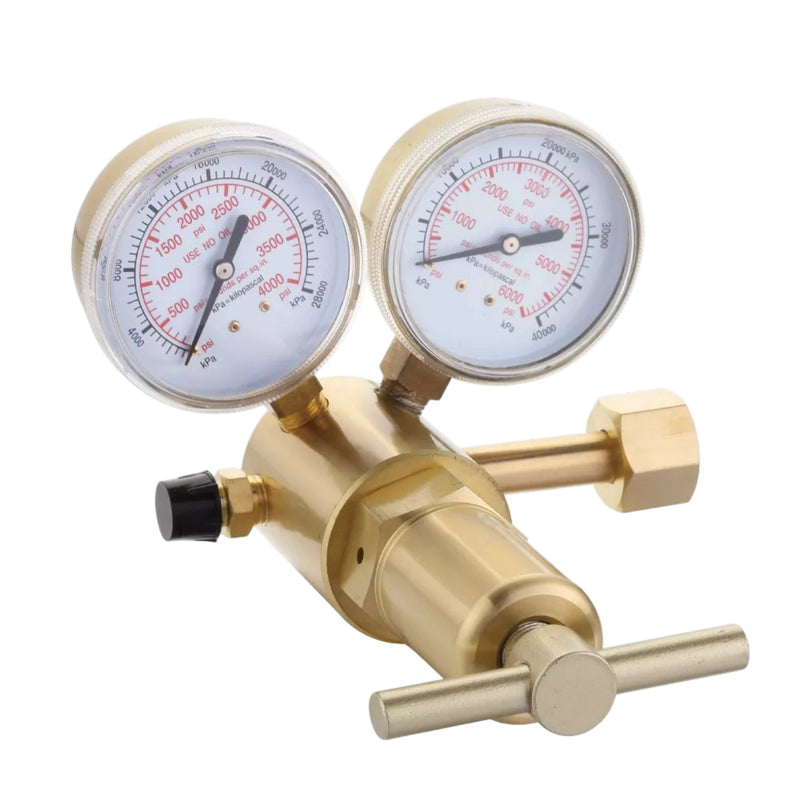

The WT-304-210M nitrogen regulator is a high pressure nitrogen regulator with a delivery pressure range of 200-3,000 PSI. It is a single stage regulator that includes two 2" gauges, a CGA-580 inlet connection, and a 9/16" - 18RH (F) outlet connection.

Features:

• High Pressure Regulator
• Single stage construction for stable pressure control
• Machined brass body and housing cap for high strength and durability
• Piston-Type design for high pressure resistance and reliable performance
• Sintered metal inlet filter to trap impurities and protect internal components
• No soldered joints for easy maintenance and longer service life
• Side entry design
• 2" Gauges
• UL Standard/EN ISO2503
• Delivery pressure range 200 - 3000 PSI
• 9/16"-18 RH (Male) outlet connection
• CGA-580 Inlet connection

Available CGA fitting:

• CGA-580
• CGA-540
