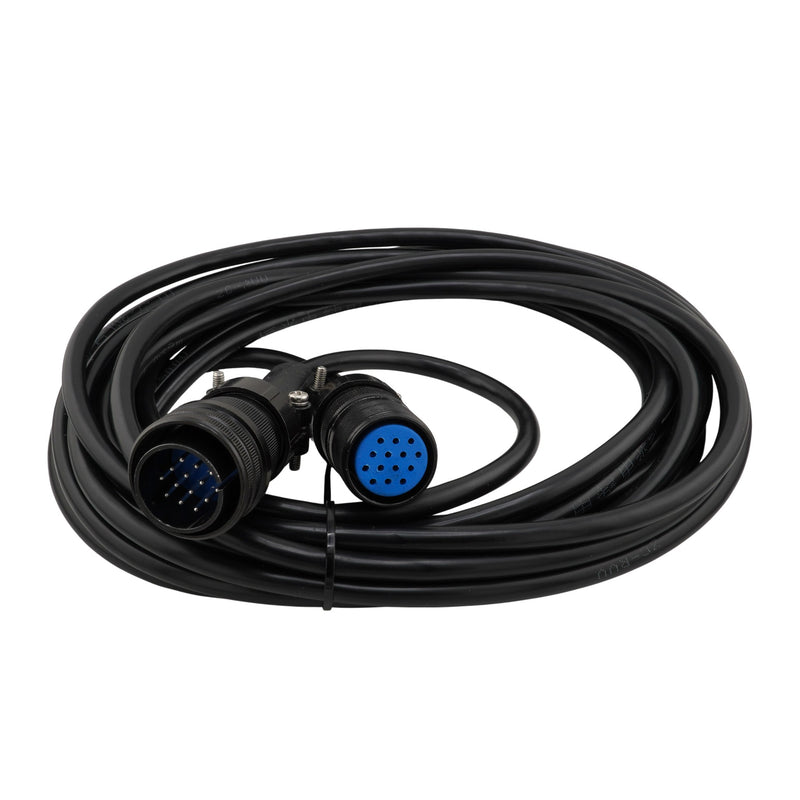

Miller 14 Pin 12 Core Interconnection Cable

Miller Style Extension Cable

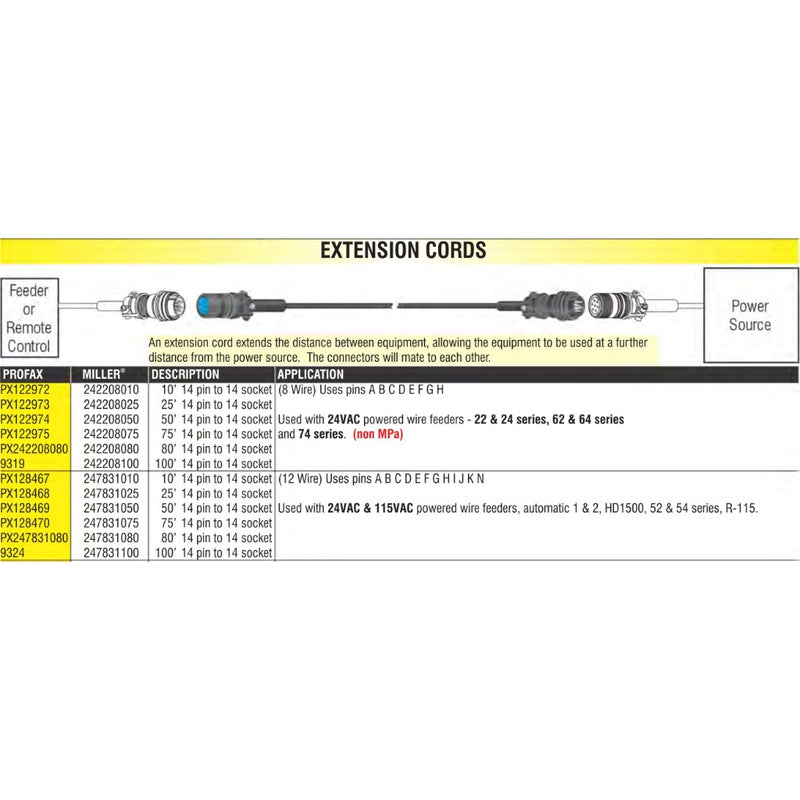

The Miller style 14 pin extension cord extends the distance between equipment, allowing the equipment to be used at a further distance from the power source. The
connectors will mate to each other. Can be used as both an amperage control extender as well as wire feed extension. 12 Core cable has pins A, B, C, D, E, F, G, H, I, J, K, N wired for use.

Non-Exhaustive Compatibility List:

• All Miller 24 VAC annd 115 VAC powered wire feeders utilizing 14 pin connections
• All Miller 14 pin amperage controls and remote controls
• Miller 22 & 24 series wire feeders
• Miller 62 & 64 series wire feeders
• Miller 74 series wire feeders (non MPa)
• Miller Automatic 1 & 2, HD1500
• Miller 52 & 54 series wire feeders
• Miller R-115 wire feeder

Lengths and Part Numbers Available:

• 10'  - 247831010
• 25' - 247831025
• 50' - 247831050
• 75' - 128 470

• Custom lengths can be made to order

Feature:

• Standard Miller 14 pin male and female plug
• 12 Core wiring with pins A, B, C, D, E, F, G, H, I, J, K, N connected
• Available in 10', 25', and 50' as standard sizes. Custom lengths can be made to order
• Male to female end
• High quality metal end Amphenol connectors
