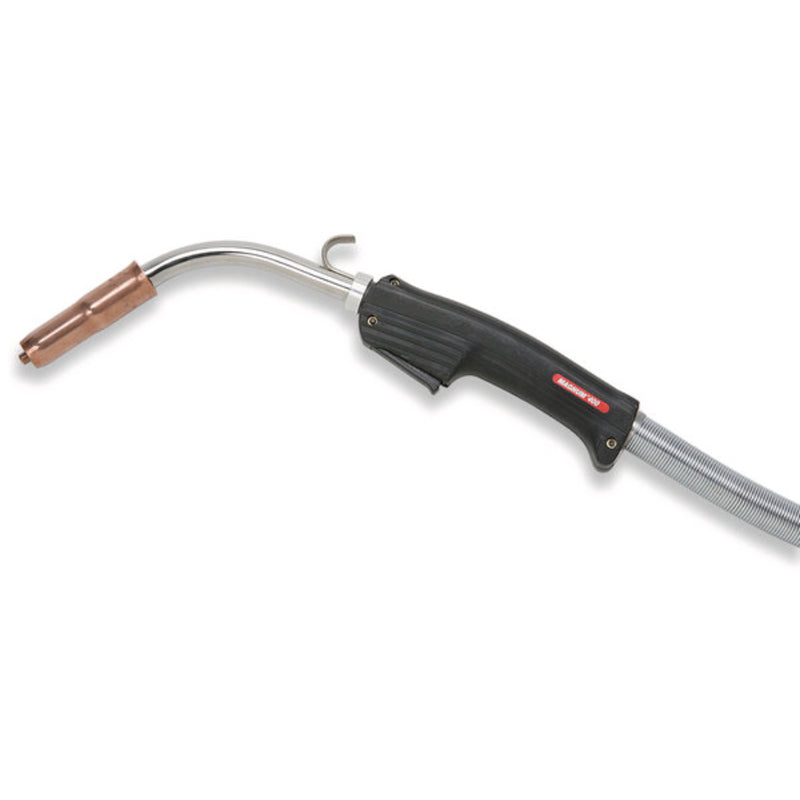

Lincoln Magnum 400 Classic MIG Welding Gun

Lincoln Magnum 400 MIG Gun

Magnum® guns for MIG or flux-cored welding feature our classic curved handle and are available in a number of amperage ranges for use in many applications. Purchase this gun to have the same feel as the Magnum Pro gun that ships with many Lincoln welders, with the ability to use classic Tweco consumables that are significantly more economical.

Features:

• One-piece modular trigger assembly - Molded out of high heat resistant material to withstand head and spatter and ensure long life.
• Gun tube design - Armored with an electrically insulated metal jacket optimizing fine wire welding performance.
• Abrasion-resistant, extruded rubber jacket - Adds strength and long life to the cable.
• Classic curved handle - Lightweight and balanced, providing a comfortable grip to reduce fatigue.
• Rotating gun tube and gun hanger clip - Allow any number of hand positions to reduce fatigue or fit into tight spaces.
• 60% Duty cycle at 400 amps

Options Available:

• 10' Lead - .035"-.045" wire - K471-1
• 15' Lead - .035"-.045" wire - K471-2
• 15' Lead - .052"-1/16" wire - K471-4
• 20' Lead - .035"-.045" wire - K471-10
• 25' Lead - .035"-.045" wire - K471-13
• Gun can be configured custom. Just contact us

Consumables:

• 23 Series MIG Nozzle
• 24A Series MIG Nozzle
• 24CT 2-Piece MIG Nozzle
• 34CT Insulator for 2-Piece Nozzle
• 14 Series Contact Tip
• 54 Series Diffuser
• MIG Liners

Machine Connection Options Available:

• ***LINCOLN DOES NOT INCLUDE GUN CONNECTION POINTS WITH PURCHASE***
• PURCHASE LINCOLN CONNECTION KITS HERE

CLICK HERE FOR SPEC SHEET
