Lincoln Electric MIG Gun Connector Kits

Lincoln Electric Power Pins & Control Plugs

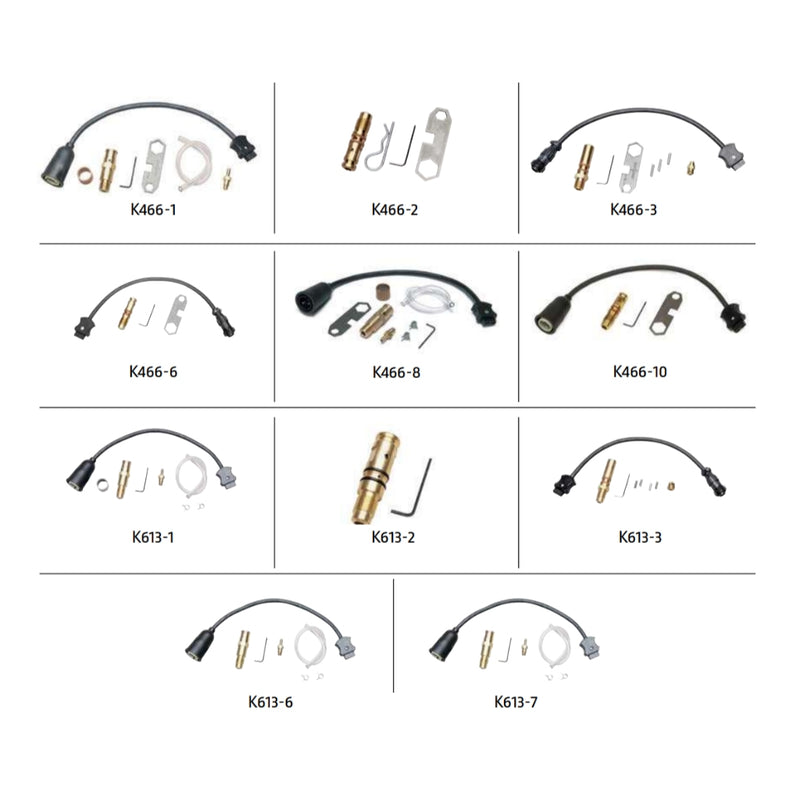

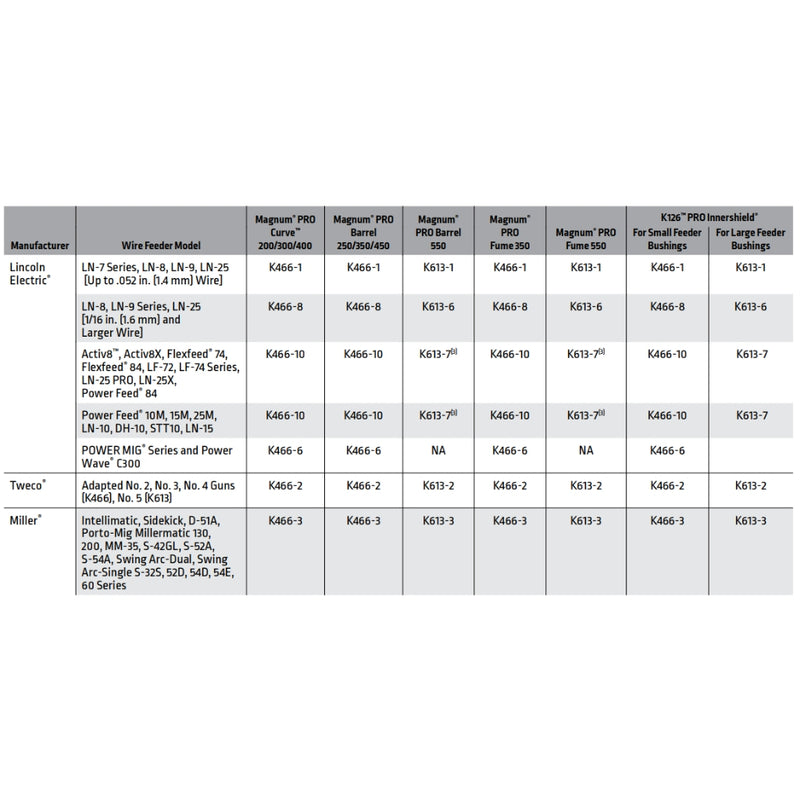

Lincoln Electric MIG guns require the additional purchase of power pin and control plug connectors to connect to your machine. Select from the list below to make your MIG gun ready to use.

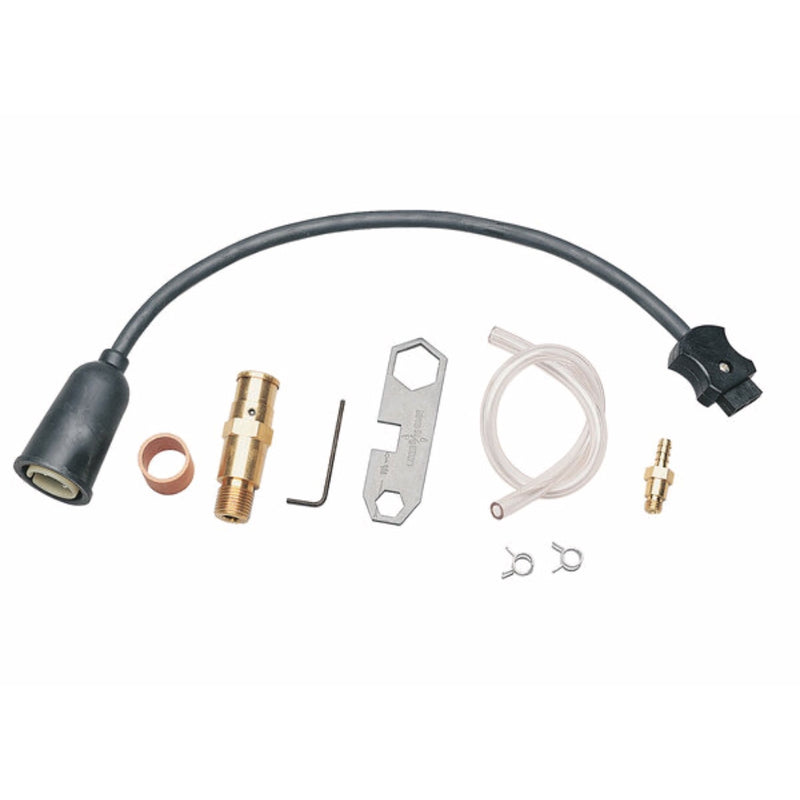

K466-1 Connector Kit for LN-7-8-9, LN-25

• Gun connector kit for the Lincoln LN-7 Series, LN-25, LN-8, and LN-9 using smaller than 1/16 in wire.
• For use with KP42 & KP44 series liners

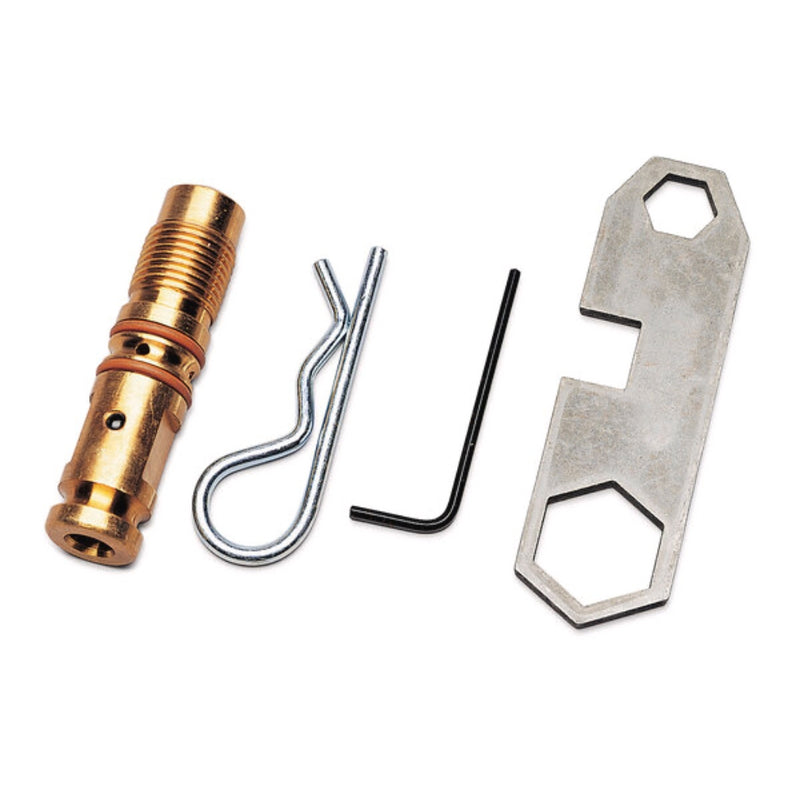

K466-2 Tweco Number 2, 3, 4 Power Pin

• Gun connector kit for Tweco Adapted wire feeders, using No. 2, No. 3, and No. 4 guns.
• For use with KP42 & KP44 series liners

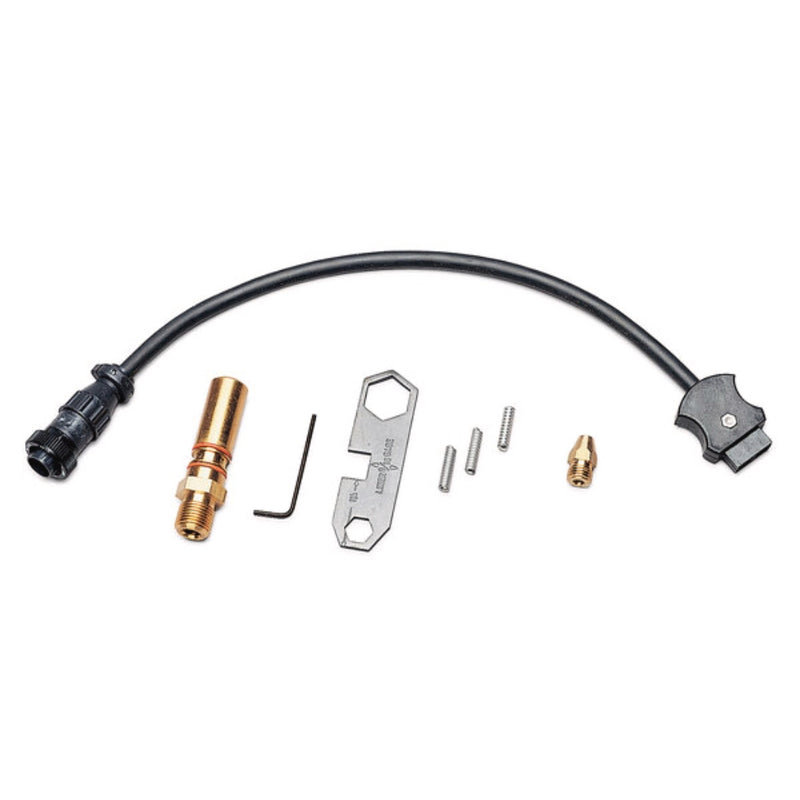

K466-3 Connector Kit for Miller Feeders

• Gun connector kit for Miller® Intellimatic, Sidekick, D-51A, Porto-Mig Millermatic 130, 200, MM-35, S-42GL, S-52A, S-54A, Swing Arc-Dual (new), Swing Arc-Single (new), S-32S, 52D, 54D, 54E, and 60 Series.
• For use with KP42 & KP44 series liners

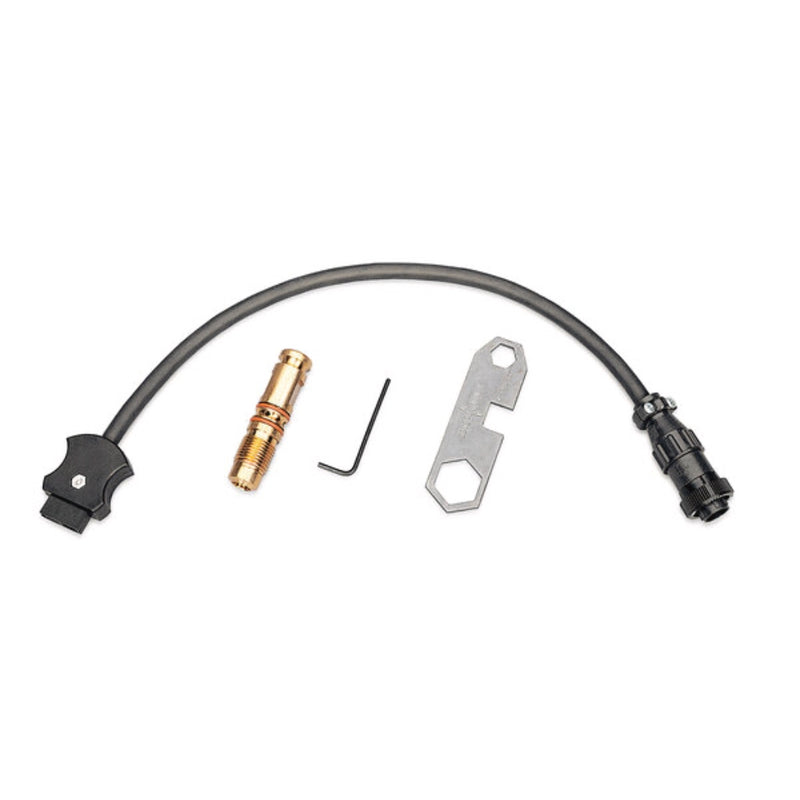

K466-6 Connector Kit for PowerMIG & Power Wave

• Gun connector kit for the Lincoln Wire-Matic and Power MIG power sources.
• For use with KP42 & KP44 series liners

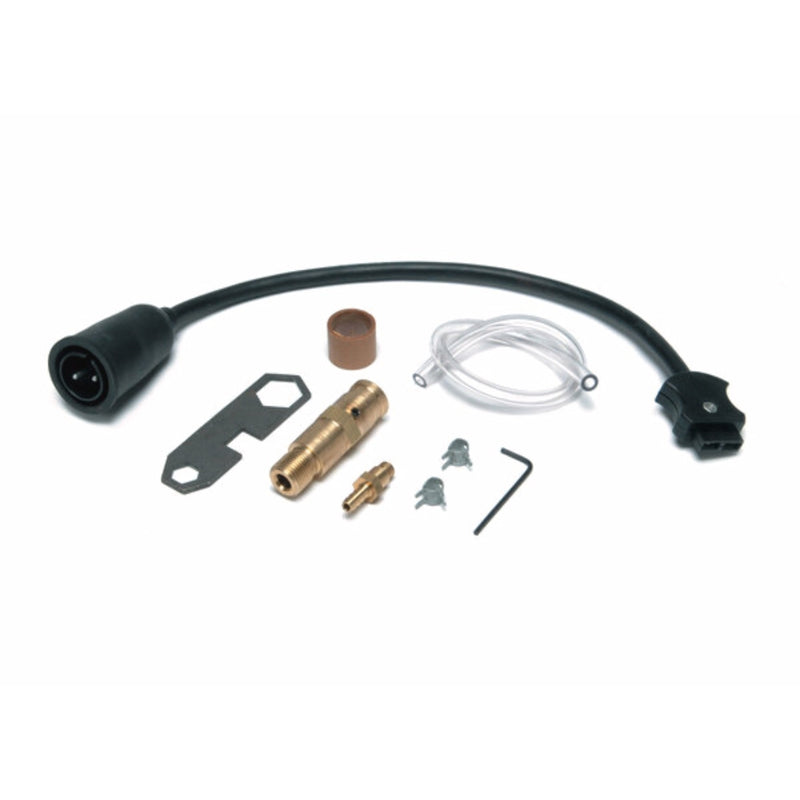

K466-8 Connector Kit for LN-8-9 (1/16" & Larger)

• Gun connector kit for Lincoln LN-8, and LN-9 using larger than 1/16 in wire.
• For use with KP42 & KP44 series liners.

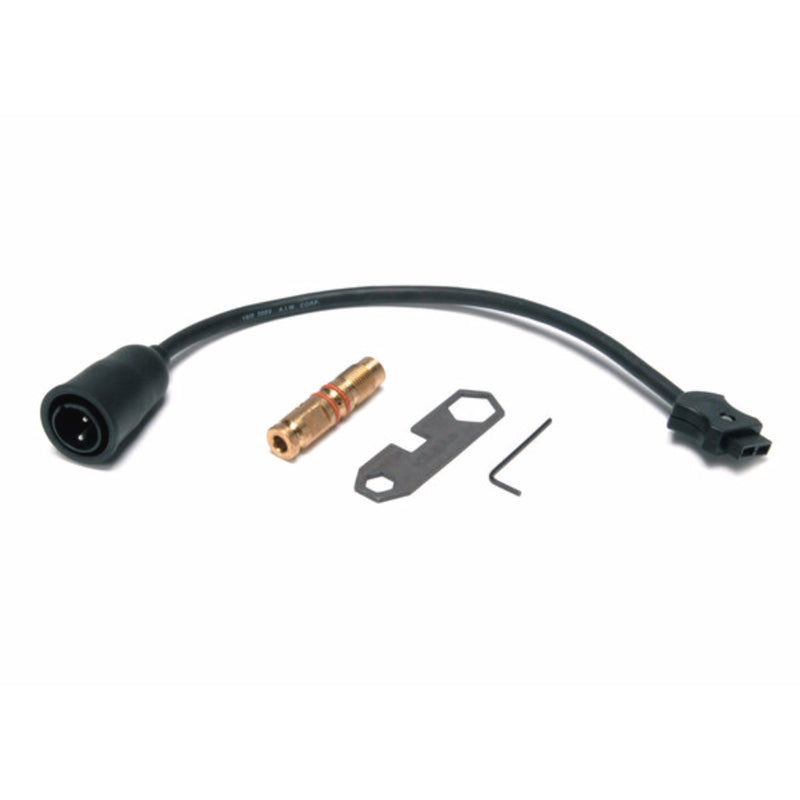

K466-10 Connector Kit for Lf-72-74, LN-25 Pro, Power Feed 25M

• Gun connector kit for Lincoln 10 series wire feeders
• Active8, Activ8X, Flexfeed 74, Flexfeed 84, LF-72, LF-74, LN-25 Pro, LN-25X, Power Feed 84
• For any feeder that uses a Tweco power pin with a bell plug control plug
• For use with KP42 & KP44 series liners.
