Bernard Centerfire Style BTB MIG Gun - 300 Amp 15' Lead

300 Amp MIG Gun - Centerfire Consumables

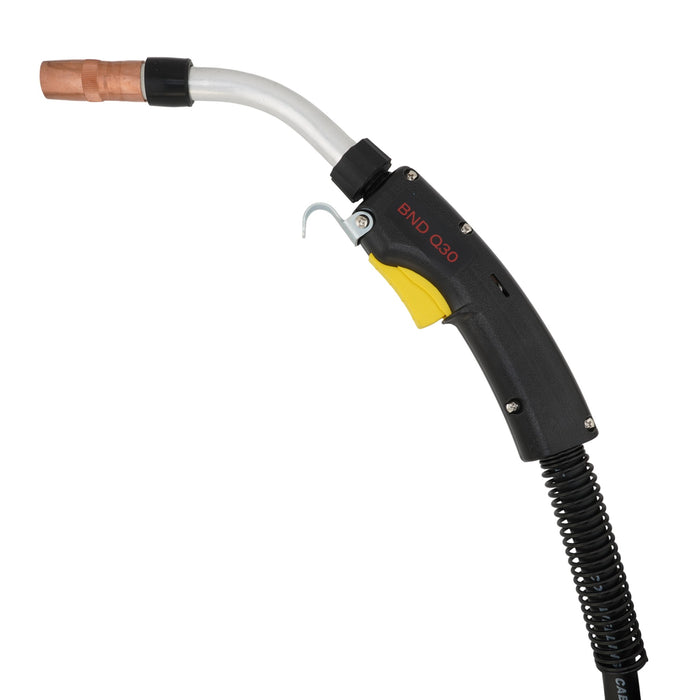

This 300 amp Bernard style MIG gun is a hand-picked aftermarket product that replicates the build quality and feel of a genuine Bernard BTB MIG gun as closely as possible. The small B series curved handle is made a of a hard plastic material that does not yield, and can be 1:1 interchanged with OEM service parts. The standard trigger provides the same satisfying "click" you expect from the OEM product. By default, the gun includes a rotatable neck that does not require tools to change, but any Bernard neck can be installed in it's place to suit user preference.

At the back end of the gun, the power pin has the same heavy duty construction you expect, with the built-tough plastic housing your work environment requires. Both ends of the whip include steel spring strain reliefs that prevent kinking and degradation at the most critical points in your weld leads.

When performing a complete tear down side by side between this gun and the OEM BTB gun, there are a small handful of places where the OEM gun is superior, but when it comes to the meat and potatoes, there are more similarities than differences.

This gun is the perfect choice for Welders using a Millermatic 252, Multimatic 255, Lincoln PowerMIG 256, or any other 250 amp MIG welder. It is intended as a high quality offering at a fair price for those welding steel up to 250 amps, and using either .035" or .045" wire.

Features:

• Made in-line with Bernard OEM specifications

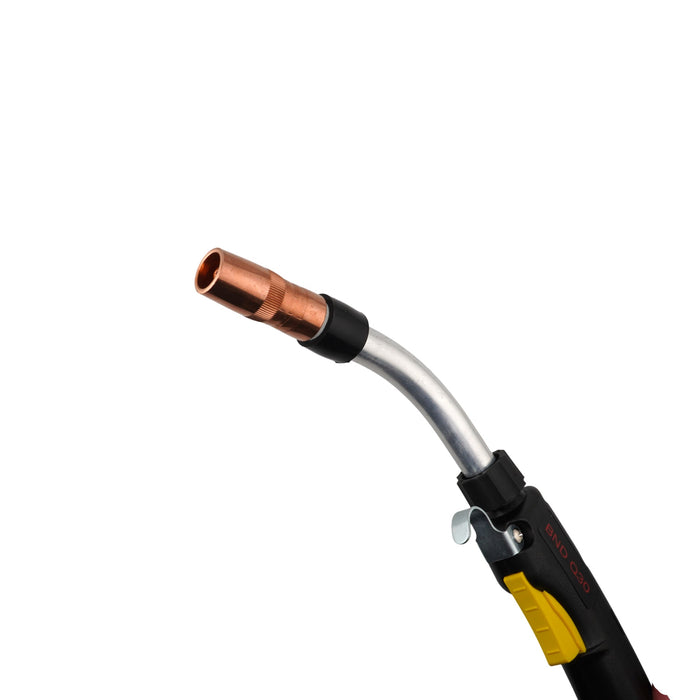

• Rotatable neck requires no tools to change
• Uses Bernard Centerfire style consumables
• 15' Whip length
• Rated for 300A @60% With CO2, 250A for mixed gas
• Installed liner for .035"-.045" steel wire

Options & Compatibilities:

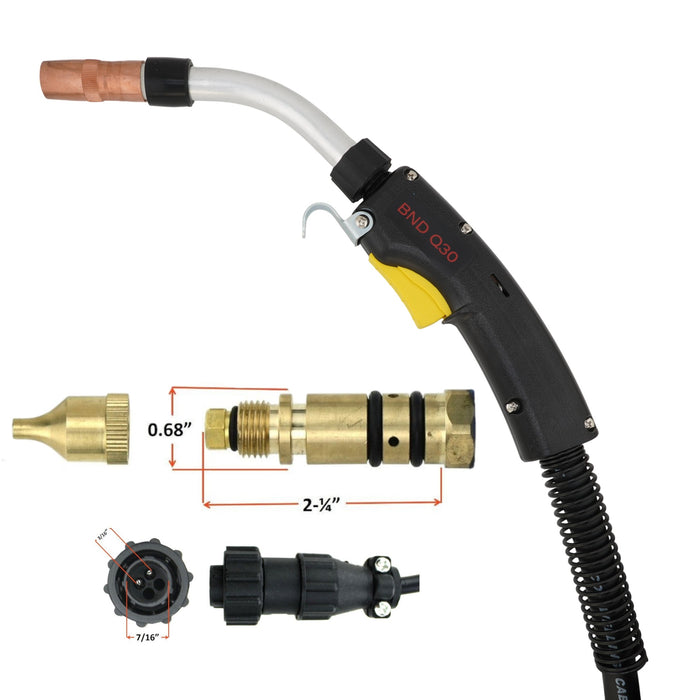

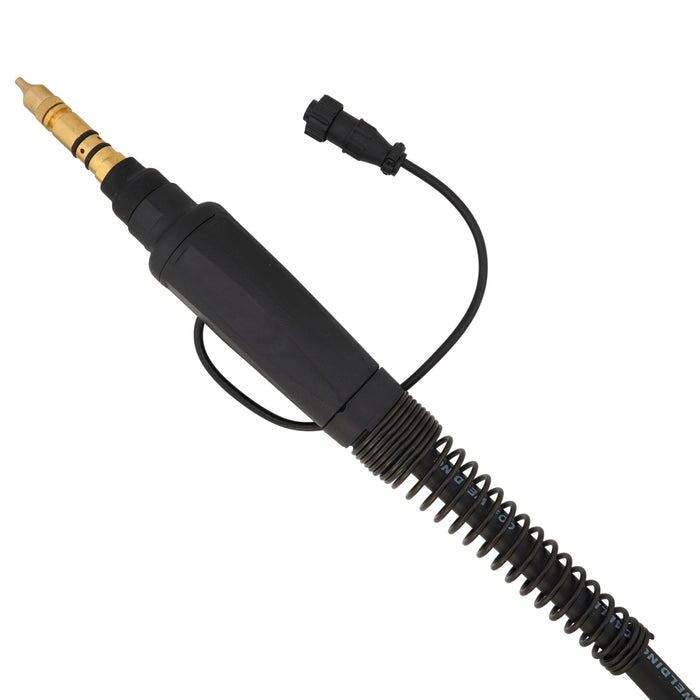

• Miller: Fits any Miller welder

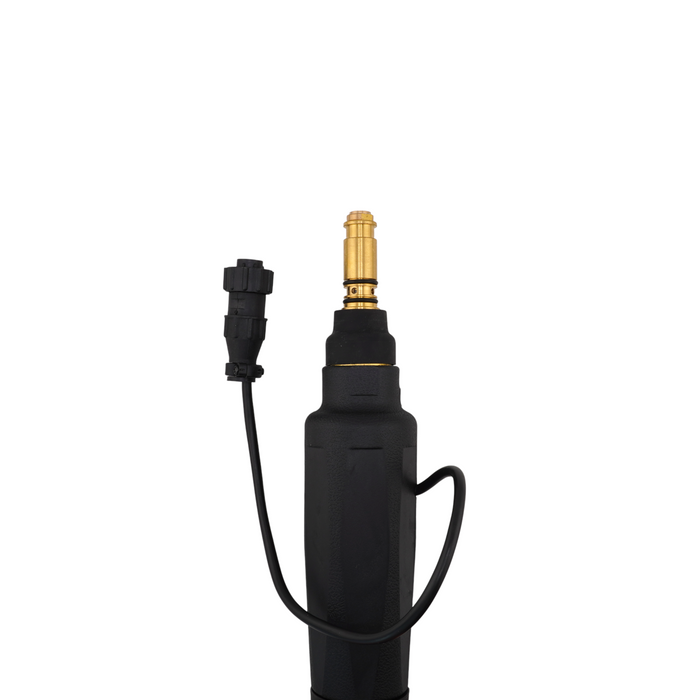

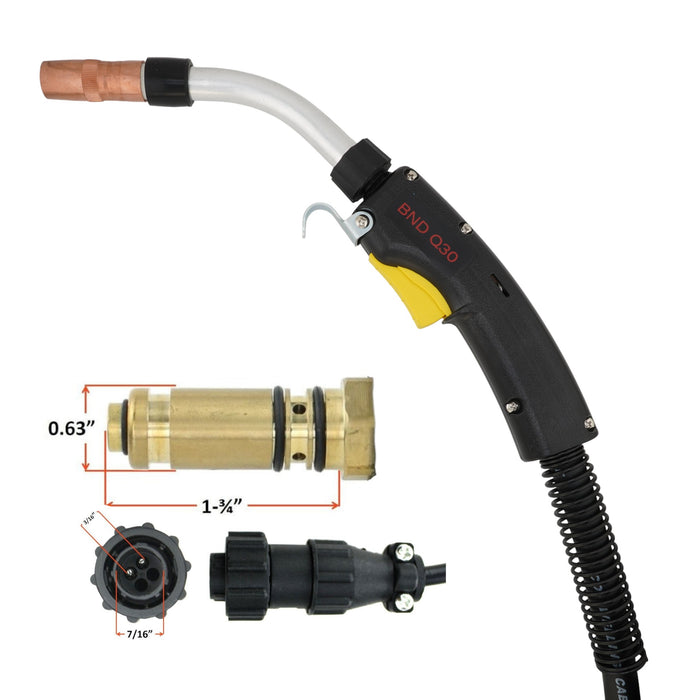

• Lincoln PowerMIG: Fits any Lincoln PowerMIG series
  • ESAB Rustler 280 and Rebel series: add LEADS-ESAB control plug
  • Lincoln LN-25 Pro wire feeder: add Lincoln Bell Plug control plug

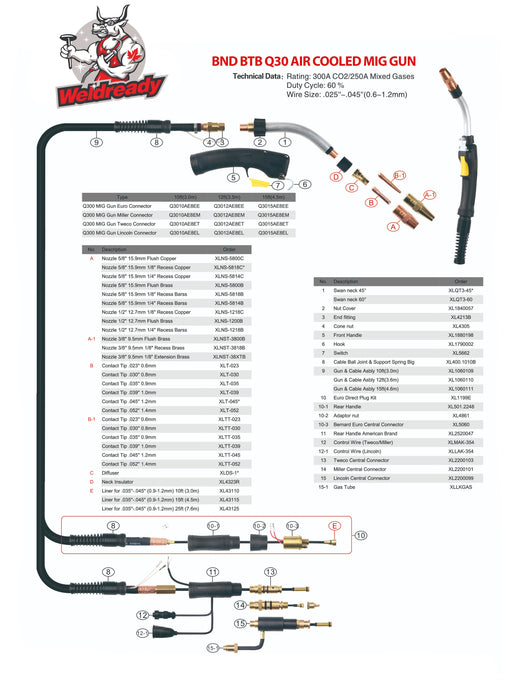

Bernard Centerfire Consumables Installed:

• Bernard Centerfire DS-1 Diffuser
• Bernard Centerfire contact tips
• Bernard Centerfire small nozzles
• Bernard Neck for Q-Gun
• Bernard Universal Liner
• Bernard 4323R Insulator
