Voestalphine Bohler FOX CEL+ 6010 Root-Pass Stick Electrodes

Premium 6010 Stick Electrodes

Bohler 6010 is a premium, made in Austria, cellulose stick electrode optimized for root passes in pipeline applications that yields superior results. The low hydrogen rating makes the welds  very resistant to cracking.

Cellulose electrode for vertical-down welding of large diameter pipelines. Especially recommended for root pass welding on D.C. positive polarity in the vertical down and vertical up welding positions. Apart from its good welding and gap bridging characteristics Böhler FOX CEL+ provides a powerful arc that deposits well penetrated, smooth root passes with high travel speeds as well as high safety against the formation of piping or hollow bead and undercut. BÖHLER FOX CEL+ can be used in sour gas applications (HIC-Test acc. to NACE TM-02-84). Test values for SSC-test are available too.

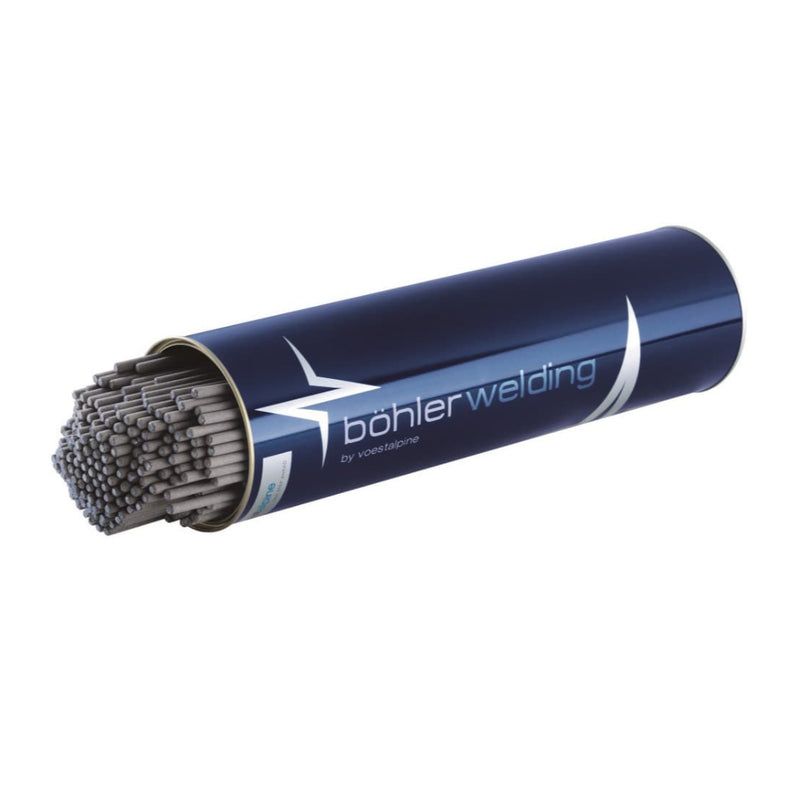

Each pack of rods is stores inside a hermetically sealed steel cylinder to ensure optimal freshness and negligible moisture absorption.

Options Available:

• 3/32" (2.5mm) Diameter, 300mm Length, 3.18kg (7lb) Tube
  • Three tubes per box
• 1/8" (3.2mm) Diameter, 350mm Length, 8.7kg (19.2lb) Tube
  • Two tubes per box
• 5/32" and 3/16" available upon request

• Skid quantities available for discount!

Suitable Base Materials:

S235JR, S275JR, S235J2G3, S275J2G3, S355J2G3, P235GH, P265GH, P355T1, P235T2-P355T2, L210NB - L415NB, L290MB - L415MB,
P235G1TH, P255G1TH
Root pass up to L555NB, L555MB
API Spec. 5 L: A, B, X 42, X 46, X 52, X 56, Root pass up to X 80

CLICK HERE FOR PRODUCT SPECIFICATION SHEET
