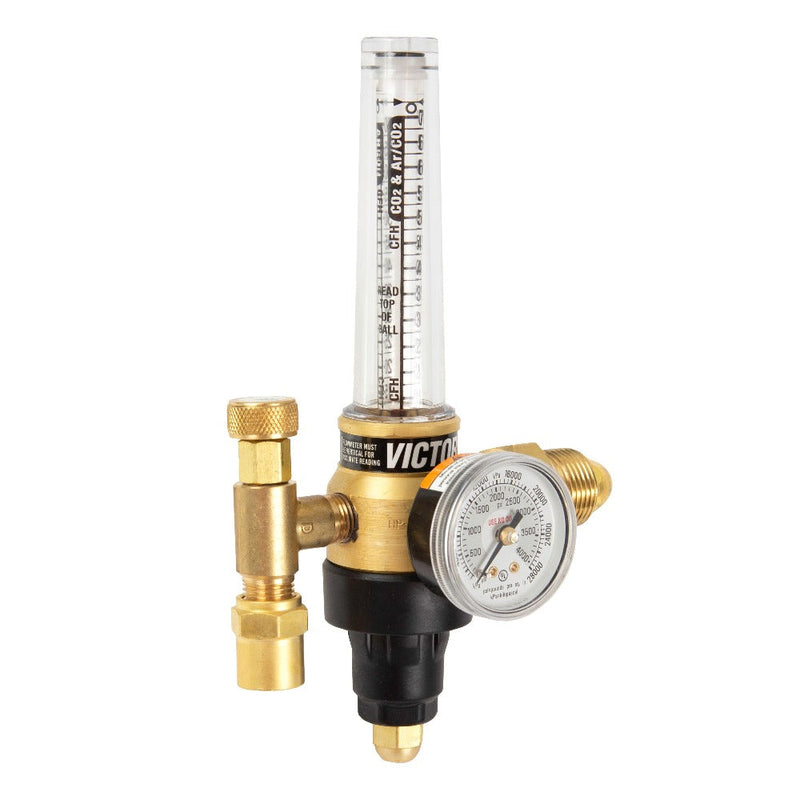

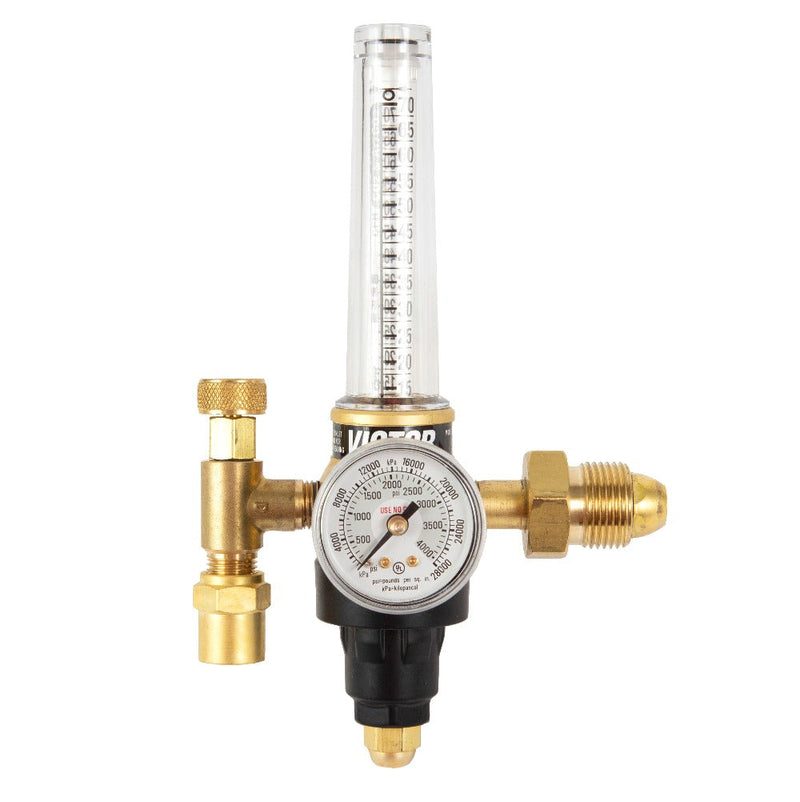

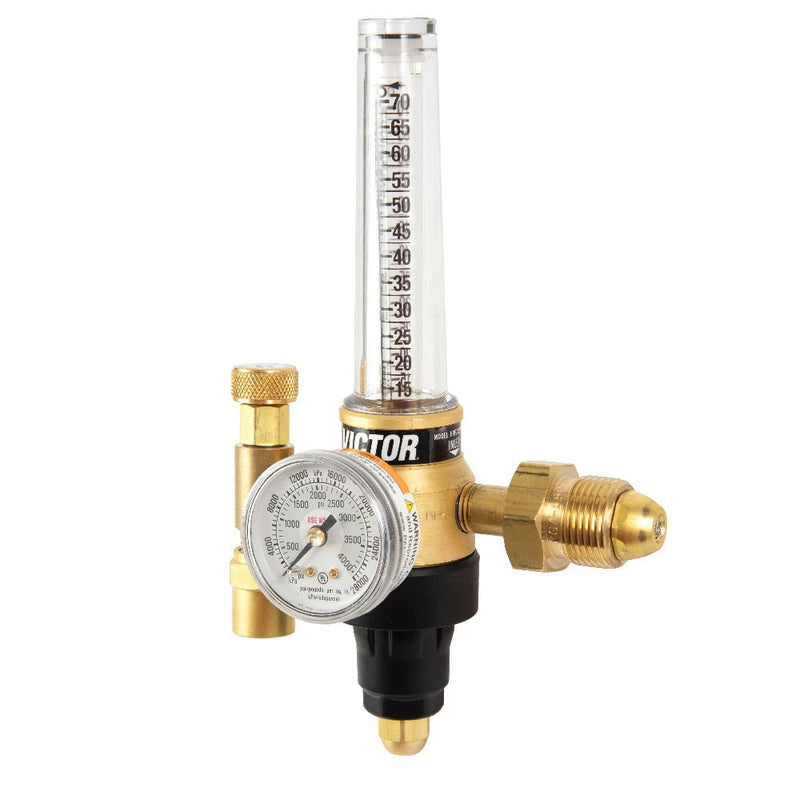

Victor HRF 2400 Pro Series Flowmeters

Victor HRF 2400 Pro Series Flowmeters

The HRF2400 Pro Series flowmeter regulator offers increased flow rate and a new, high-visibility flow tube with an easy-to-read scale. The scale is rotatable and has bolder, bigger print, that can be read from a distance. The flowmeter delivers superior accuracy to ensure proper gas usage, and reduces time wasted on constant adjustments to maintain correct flow. Save time, money on gas, and frustration.

Performance:

• 70 CFH Flow Rate to support MIG / TIG and other highflow applications
• Ideal for all applications where superior dependability is needed
• Newly designed flow tube with improved scale visibility
• Superior CO2 performance for longer CO2 application run time
• Accurate, consistent flow delivery over the life of the cylinder

Design:

• Regulator/flowmeter combination in one compact unit
• Diaphragm style regulator with fabric-reinforced neoprene diaphragm
• Back pressure compensated
• Precision needle valve, ensuring an accurate flow rate, even when exceeding 50 CFH
• External self-reseating pressure relief valve (not designed to protect downstream equipment)
• Safety overpressure burst mechanism built into flow tube for added safety
• Machined brass body & die-cast housing cap
• Sintered inlet filter – bronze
• Third-party ETL listed to UL Standard 252
