TIG Torch Adapter for 18/20 - Dinse 35, External Gas

TIG Torch Adapter Dinse 35, External Gas

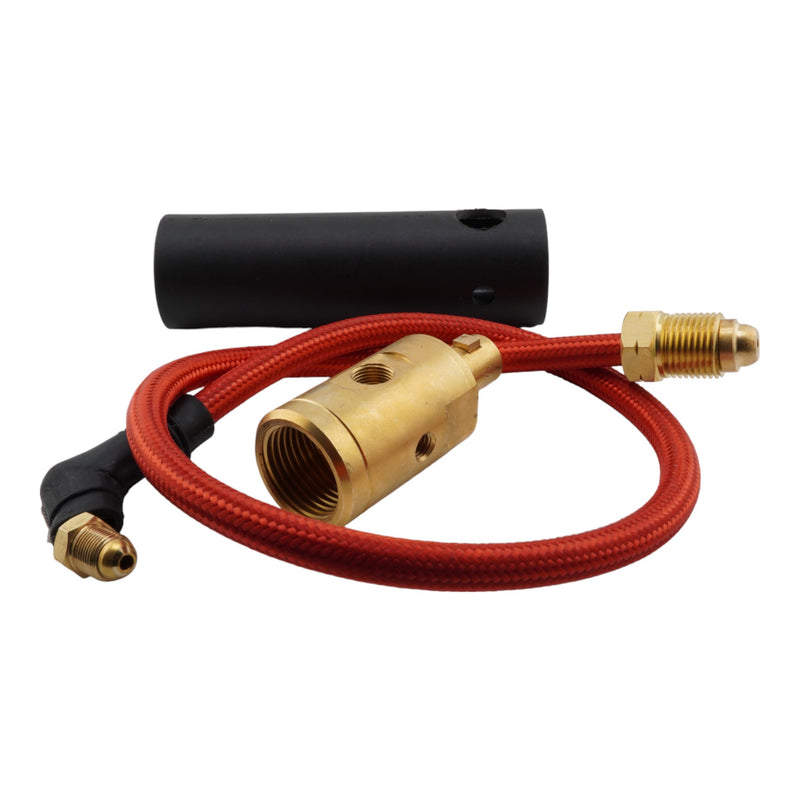

The most common connection for water cooled TIG welders. This simple adapter connects #18 and #20 TIG torches to welding machines that utilize a dinse 35 connection, and do not run gas through the dinse port.

Features:

• Modular, machined brass with plastic insulating housing
• Compatible with #18, #20, FL230, and FL250 TIG torches
• Miller equivalent part number 195377
• Lincoln equivalent part number K1622-
• CK Worldwide equivalent part number SLWHAT-35

Specifications:

• Male Power Connection: Dinse 35 (50 mm)

• Return Water Line: 5/8" - 18LH Threads

• Torch Female Connection: 7/8"-14 LH Threads

Compatible Miller Welders:

• CST 250, CST 280, CST 300, CST 400
• Dynasty 200 SD, 200 DX, 210, 210 DX, 280, 280 DX, 300 Series, 350, 400 Series
• Invision 350MPa, 352MPa, 354MP
• Maxstar 91, 152, 200 Series, 210 Series, 280 Series, 300 Series, 350, 400
• Multimatic 255
• Pipeworx 350 Fieldpro (w/ Dinse)
• Syncrowave 250 DX, 350 LX
• XMT 304 CC/CV, 350 CC/CV

Compatible Lincoln Welders:

• Aspect 300
• Invertec 160-S, V200-I, V200-PRO, V250-S, V275- S, V300-I, V350 Pro
• Power MIG 210MP
• Power Wave 355, 355M

Compatible ESAB Welders:

• Aristo MIG 4004i Pulse, 5000i, U5000i
• Caddy Arc 151i, 152i, 201i
• Caddy TIG 1500i, 2200i, 2200i AC/DC
• ET 141i AC/DC, ET 186i AC/DC, ET 201i DC, 220i AC/DC, 301i AC/DC
• Fabricator 211i, 252i
• Handy Tig 180
• Heliarc 160i, 161 AC/DC, 252, 281i AC/DC, 352, 353i AC/DC
• MTS-3500i
• Rebel EMP/EMS 205ic EMP/EMS 215ic, EMP/EMS 235ic
• Renegade ES 300i
• Rogue 180i
• Warrior 400i MV CC/CV


Other Compatible Welders:

• AHP 200X (with quick connect)
• CK Worldwide MT200
• Everlast - All models (with quick connect)
• Primeweld TIG 225EX
• Razor Weld Razor 200 AC/DC (with quick connect)
