SteelMax SBM500 Stationary Beveling Machine

Original price $55,250.00 - Original price $59,865.00
Original price
$55,250.00 - $59,865.00
Current price $55,250.00
In stock
In stock
Package: SBM500 Machine only
Request a quote

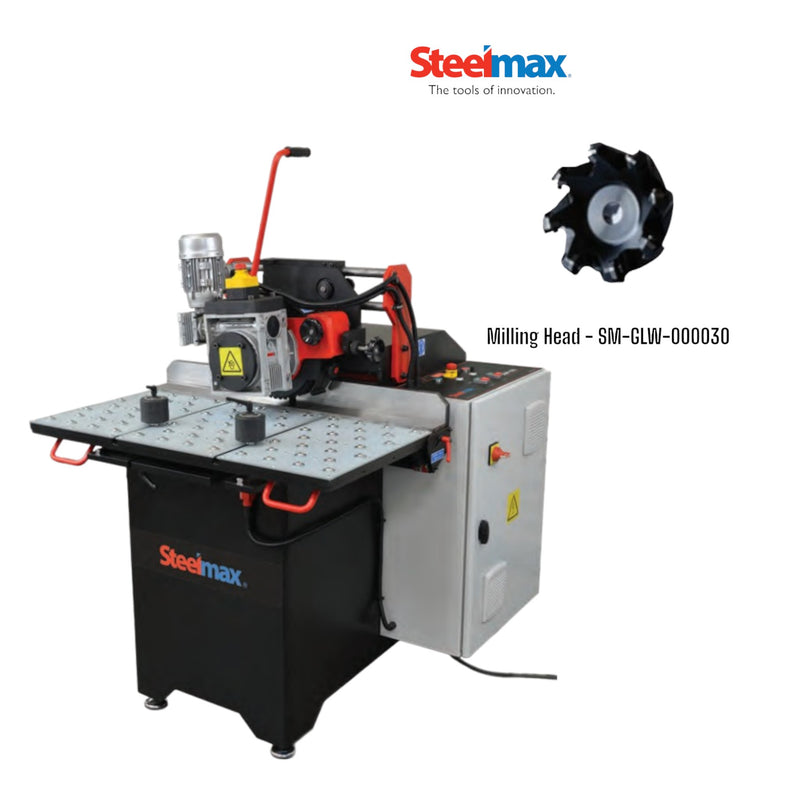

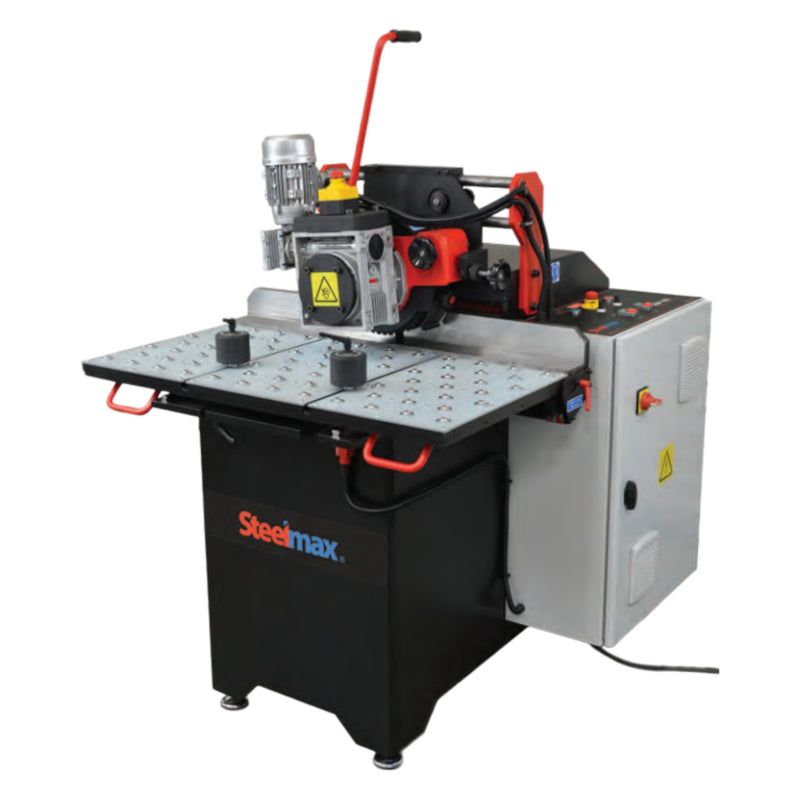

SBM500 Stationary Beveling machine by SteelMax

The Steelmax SBM500 is a durable and effective option for beveling and deburring steel plate, angle, square/rectangular tubing, and pipe. Equipped with a high-speed rotary milling head and adjustable auto feed, the SBM 500 generates precise milled weld preparations, enhancing welding efficiency and saving expenses. The machine ensures consistent and precise bevel angles, simplifying plate and root gap fit-up. This accuracy minimizes the need for excessive welding, defect repair, and production time, resulting in considerable cost reduction.

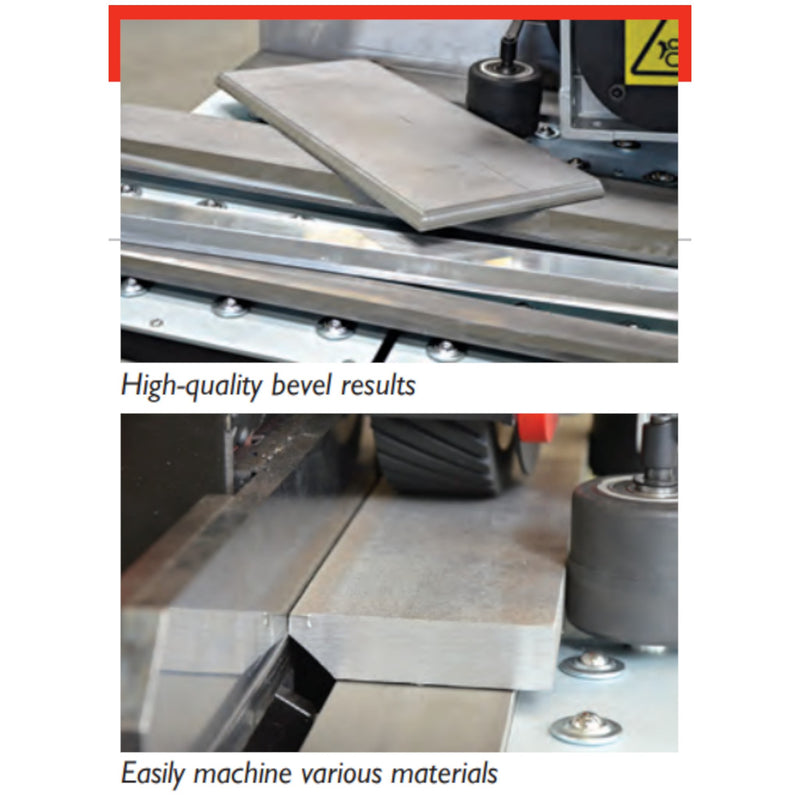

Capable Beveling Options:

SteelMax Beveling Options


  • Powerful 7,500 Watt electric motor for continuous operation
  • Variable milling head and auto-feed speeds to optimally bevel both ferrous and non-ferrous materials
  • Continuously adjustable bevel angle from 15 to 60 degrees
  • Simple depth of cut adjustment
  • High-speed rotary milling head with 10 replaceable carbide inserts produces a clean, milled surface free of thermal distortion with no heat affected zone
  • Multiple cutting insert designs for optimal performance on different materials
  • Versatile table top operation permits hand feeding of small plates, square/rectangular tubing, pipe, angle iron and round stock
  • Optional table extensions accommodate longer material
  • Produces bevel widths up to 1-3/16” (30 mm)
  • Plate thickness up to 4” (100 mm)

Technical Data:

Steelmax Technical data sheet for Steelmax SBM500

Standard Set Includes:

  • Steelmax SBM500 Unit
  • Set of Tools
  • Operator's Manual (English)
  • Steelmax Part number - SM-SBM-500

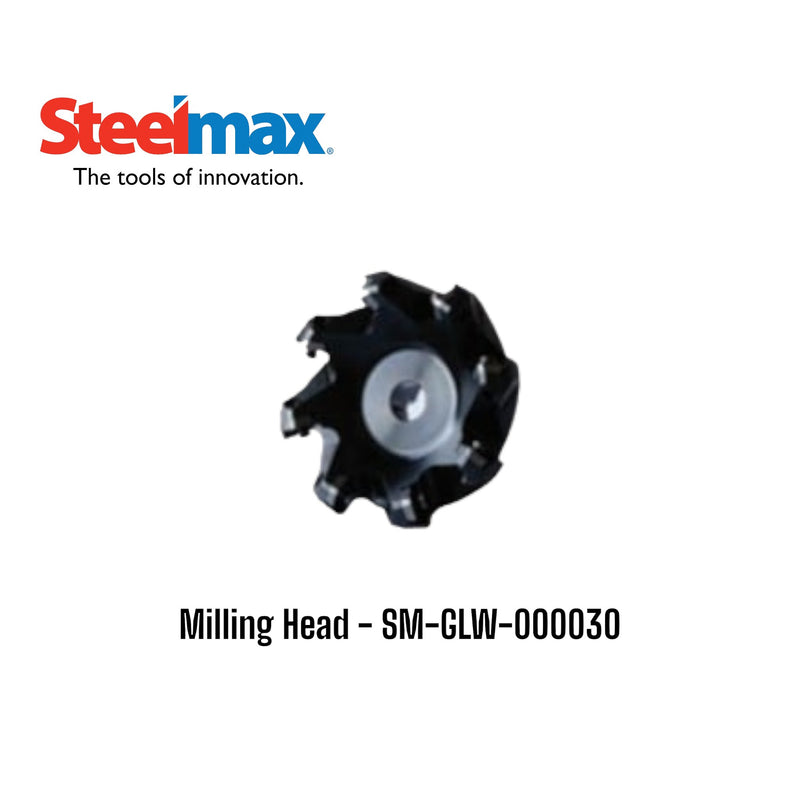

  • SM-GLW-000030 - Milling Head
    • SM-PLY-000396 - Cutting insert for steel - (10 pcs required - Sold individually QTY of 1)
    • SM-PLY-000408Cutting insert for Aluminum - (10 Pcs required - Sold individually QTY of 1)
    • SM-PLY-000397 - Cutting insert for Stainless Steel - (10 Pcs required - Sold individually QTY of 1)
  • SM-STL-0573-35-00-00-0 - Auxiliary table for long workpieces

Steelmax Aux-table extension

  • SM-PRK-0573-36-00-00-0 - Pipe beveling attachment for pipes 2-6" (50-150mm) OD

Steelmax OD pipe beveling attachment

  • SM-PRK-0573-38-00-00-0 - Narrow plate attachment for 1-3/16" to 2" (30-50mm) wide plates. Minimum plate thickness 13/32" (10mm)
