Profax PX24 4 Roll Wire Feeder for Miller Welders

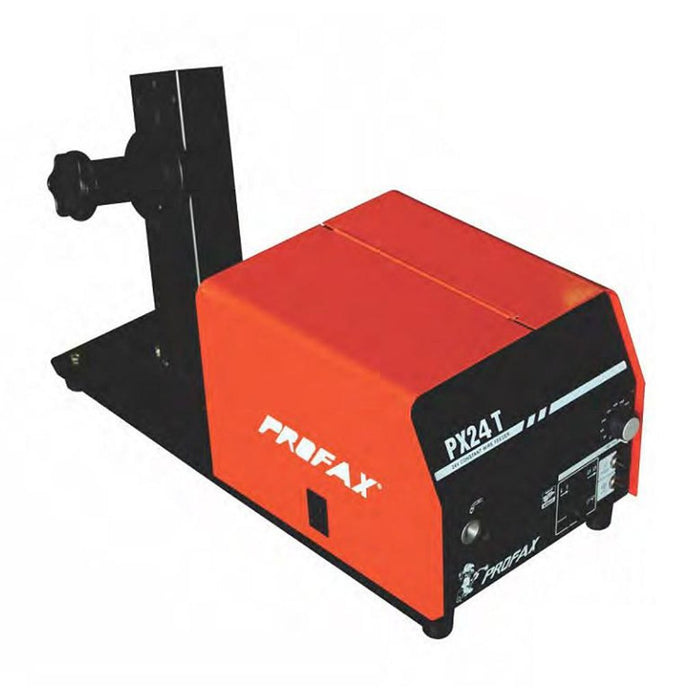

Profax PX24 Wire Feeder

Get a Miller 20 series 4 drive roll wire feeder without paying the blue tax! This feeder takes Miller drive rolls, accepts Miller MIG guns, uses the same 14 pin control plug, and is 100% OEM compatible.

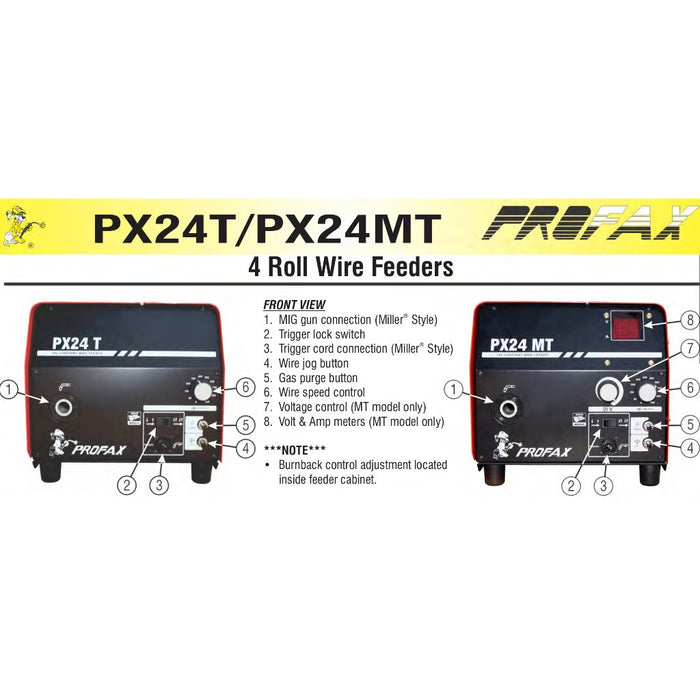

The only different between the PX24T and the PX24MT is that the PX24MT has voltage and amperage meters, and control the power source voltage (must be paired with a machine that has this capability)

Features:

• Compatible with all Miller CC/CV power sources
• Accepts Miller MIG guns
• Accepts Miller drive rolls
• Trigger hold
• Wire jog button
• Gas purge button
• Adjustable burn back control
• 3 YEAR WARRANTY

Specifications:

• Input Power: 24VAC 50/60 Hz
• Wire Diameters: 0.023-5/64" (0.6-2.0mm)
• Wire Feed Speed: 75-1000 IPM
• Weight: 38.5 lb. (17.5 Kg)
• Dimensions: 14"H x 11"W x 25.5"D

Confirmed Compatible Machines:

• Deltaweld 302, 452, 652, 350 & 500 (with 14 pin control)
• Dimension 302, 452, 652, 650, NT450, NT500
• Invision 352MPa, 354MP, 304P, 450MPa, 456P, 456MP
• XMT-350 CC/CV, 350MPa, 450 CC/CV, 450MPa, 304 CC/CV, 425 CC/CV, 456 CC/CV
• Deltafab
• Shopmate 300, 300DX
• Phoenix 456
• Should work with any Miller or Miller style power source that utilizes 24V power and 14 pin control cables
