Plymovent MonoGo Wall Mounted Welding Fume Extractor

Wall Mounted Smoke Eater for Welding

Wall-Mounted Single-Arm Extractor for Light or Occasional Welding

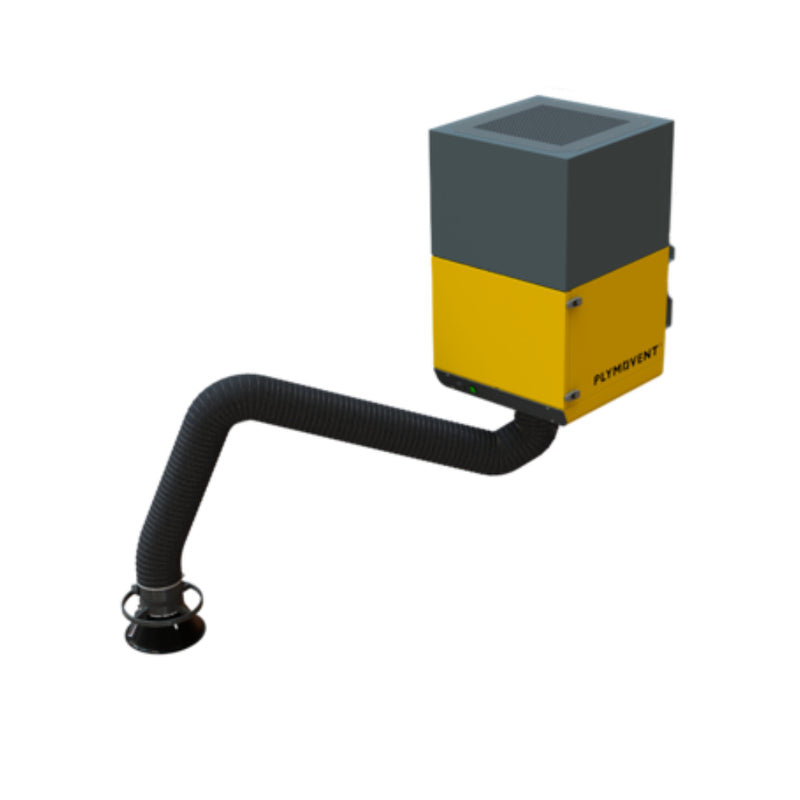

The MonoGo is a wall-mounted welding fume extractor designed for fixed workstations. It has a built-in fan, disposable two-stage filter system (pre-filter + HEPA), and an extraction arm with reach up to 4 meters. It delivers W3-rated protection against welding fumes—perfect for lighter welding tasks or occasional use.

Key Features:

• Two-stage filtration: PE pre-filter + HEPA E12 main filter for clean air and safer work environment

• Extraction arm options of 2 m, 3 m, or 4 m reach, wall-mounted, with 360° swiveling for flexible coverage

• W3 classification for use with steel and stainless steel welding applications

• Built-in fan (≈ 1.1 kW), capable of handling approx. 1 coil of solid wire or 7.5 kg of electrodes per month (MonoGo version)

• Acoustic service indicator (buzzer) and visual filter service indicator for safe maintenance timing

• Integrated spark deflection plate for safety

Technical Specifications:

• Filtration: Pre-filter (ISO Coarse 70%), HEPA E12

• Airflow capacity: up to 600 CFM (850 m³/h max)

• Noise level: ~ 67 dB(A)

• Housing weight: ~ 78 kg (basic MonoGo), ~ 79.5 kg for MonoGo Plus

• Power input: ≈ 1.1 kW motor, dual voltage options 115 V or 230 V single phase, 50/60 Hz

• Material: Electro-zinc coated steel housing

Applications & Users:

• Auto repair shops & fabrication shops with occasional welding demands

• Welding classrooms and technical colleges

• Agricultural workshops; small-scale stainless steel or mild steel work

• Suitable for TIG, occasional MIG/GMAW, stick/MMA and light welding tasks

Why Choose MonoGo:

• Compact solution for clean air at your welding bench

• Low maintenance with replaceable filter cassettes and helpful service indicators

• Safety features like spark deflection and HEPA protection for welders working in steel & stainless

• Flexible arm options let you adjust reach depending on workspace size

What’s Included / Options:

• MonoGo fume extraction unit with built-in fan & filter housing

• Choice of extraction arm (2 m, 3 m, or 4 m) • hose tube (EconomyArm)

• Pre-filter cassette (single use disposable)

• HEPA filter cassette (disposable)

• Service indicators (acoustic buzzer & visual airflow indicator)

Options Available:

• 7' / 2 meter arm
• 10' / 3 meter arm
• 14' / 4 meter arm

Replacement Components:

• Replacement Main Filter
• Replacement Pre-Filter
