Miller MDX-100 MIG Gun - 1770028

Miller MDX-100 MIG Gun - 1770028

by Miller Electric
SKU MIL1770028
Save 17% Save 17%
$422.28
$422.28 - $422.28
$422.28
$350.00
$350.00 - $350.00
$350.00
Availability:
In stock
Request a quote

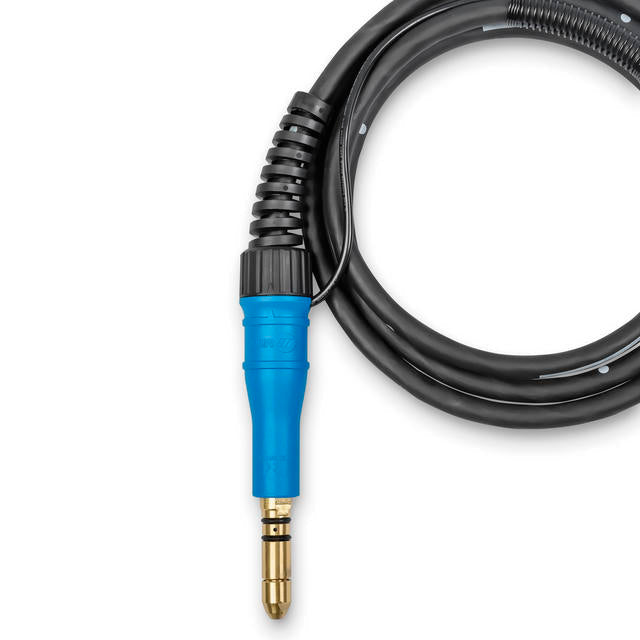

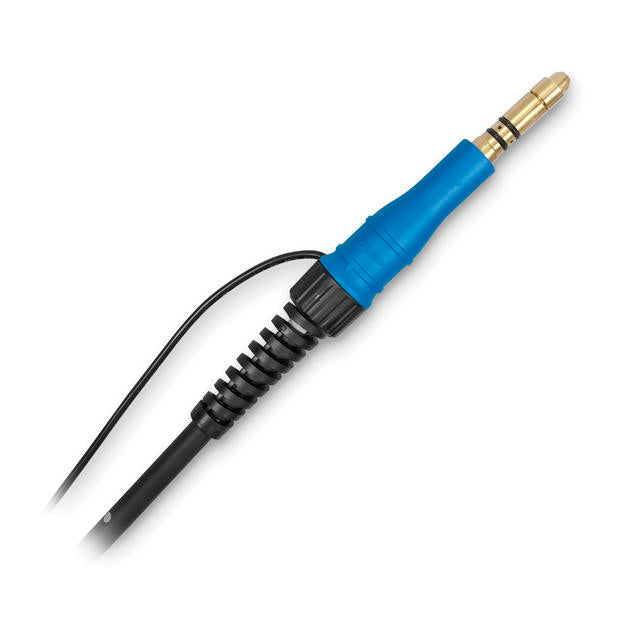

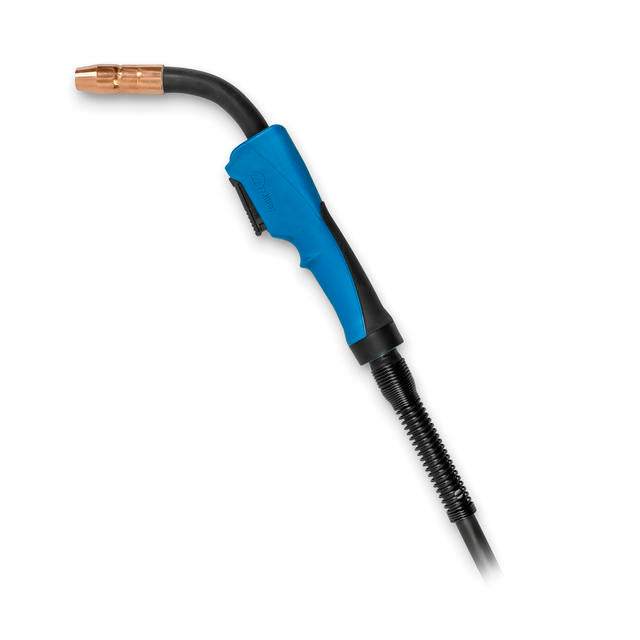

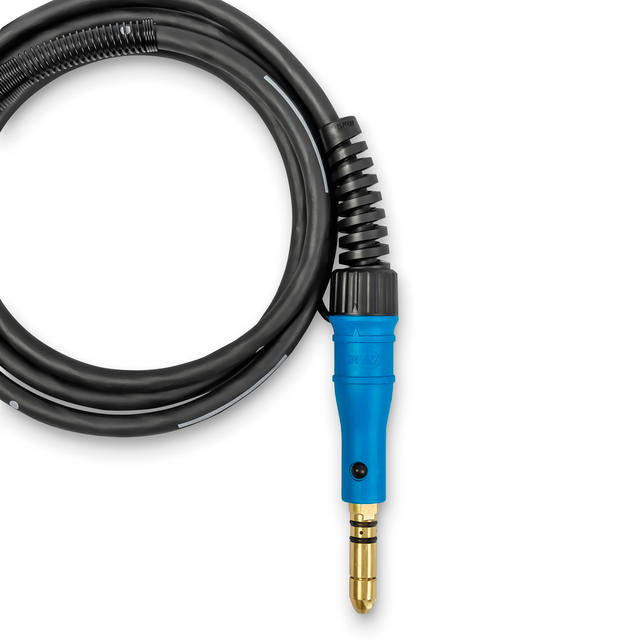

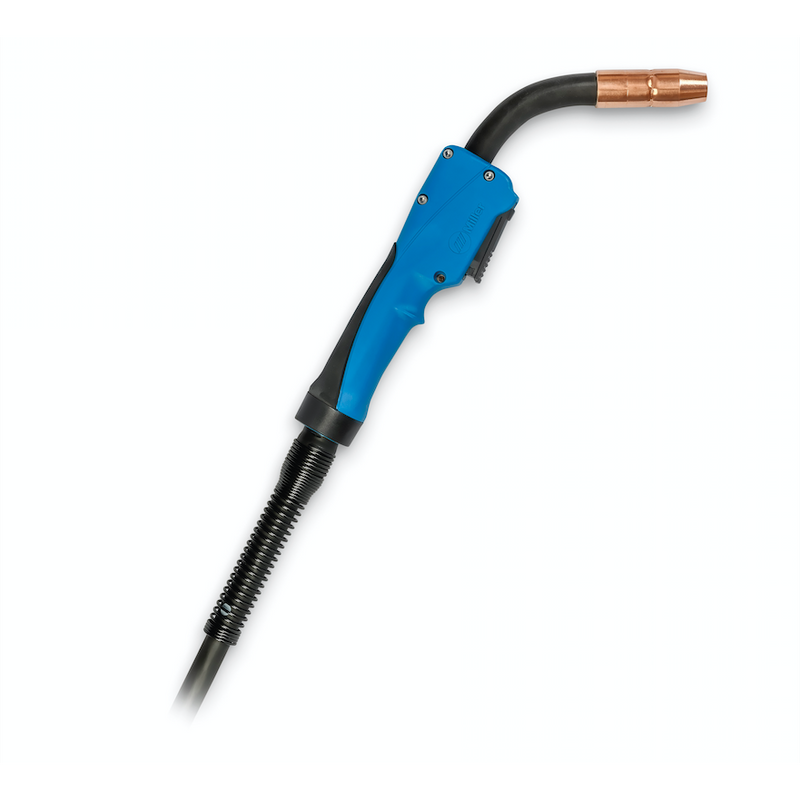

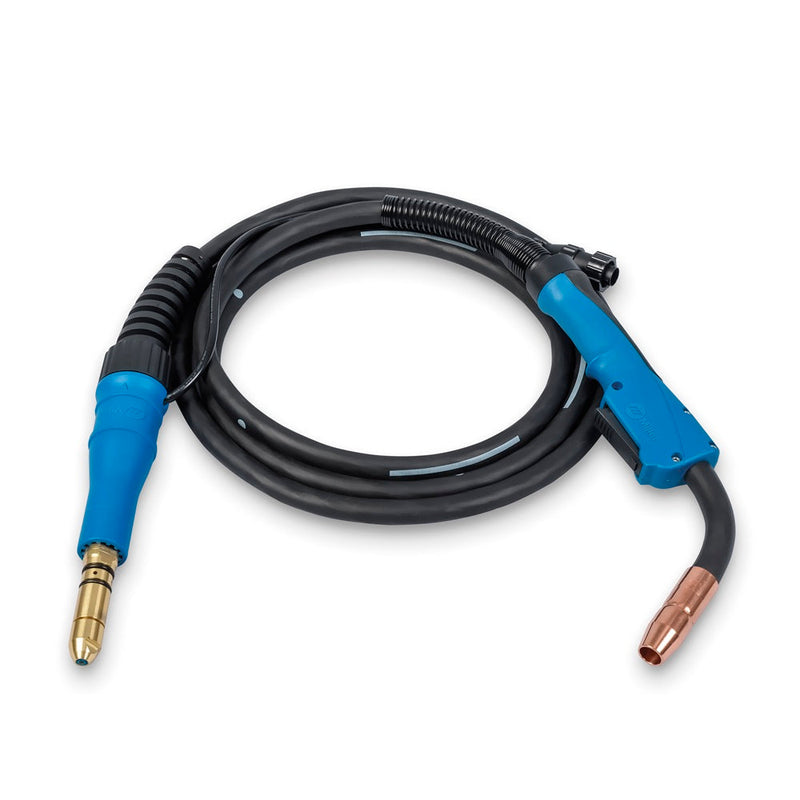

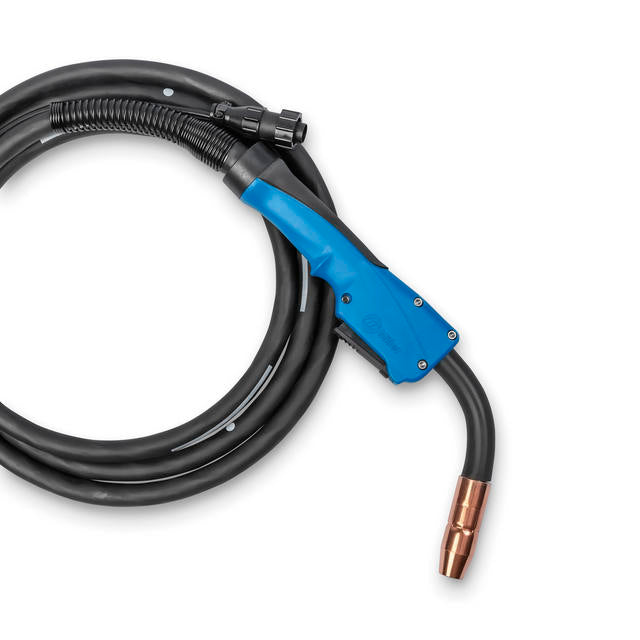

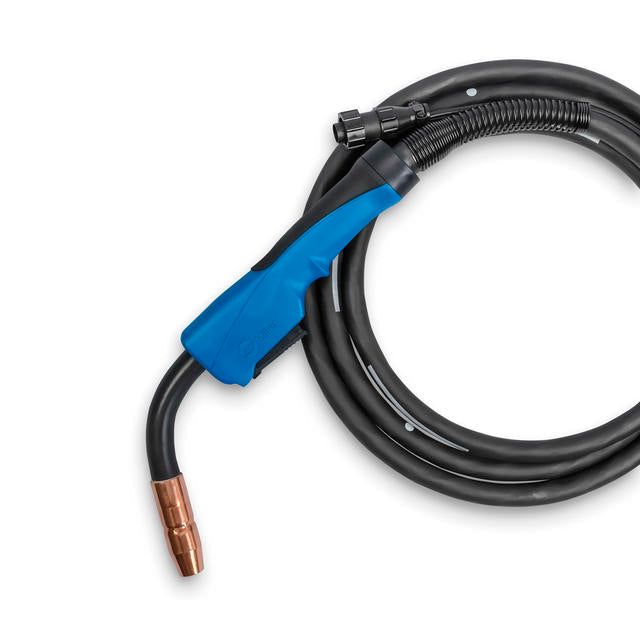

Miller MDX-100 MIG Torch

This is the MIG gun that ships with the Miller Multimatic 215 and 220, as well as the Millermatic 141 and 211. It is a plug and play replacement for these machines that will take exactly the same consumable styles.

Specifications:

  • Amperage Rated Output: 100
  • Cable Length: 10 ft
  • Wire Size: .030 - .035
  • Miller Part Number: 1770028

Intended for Use With:

  • Millermatic 141 and 211
  • Multimatic 215 and 220 AC/DC

Features:


Durable, Comfortable Handle

  • Durable handle features rubber overmolding for improved grip and comfort. Ball-and-socket rear swivel provides a freer range of motion to reduce welder fatigue.

Superior Wire-Feeding

  • Wire delivery is optimized because the front-loading AccuLock liner is locked and concentrically aligned with the contact tip and power pin. Reduces downtime and troubleshooting

Error-Proof Liner Trimming

  • No measuring required! Simplifies maintenance and prevents downtime and issues caused by improperly trimmed liners.

Long-Life Consumables

  • Tapered mating surfaces between the AccuLock contact tip and diffuser locks the tip in place for maximized electrical conductivity and lower heat.

Duty Cycle

  • 100% with CO2 and 60% with mixed gas.
Standard Wire Size - .030 - .035

Compatibility

  • This gun is compatible with the Millermatic 141 and 211 as well as the Multimatic 215 and 220 AC/DC.


Click the image below to view full spec sheet

Miller MDX-250 MIG Gun Spec Sheet
