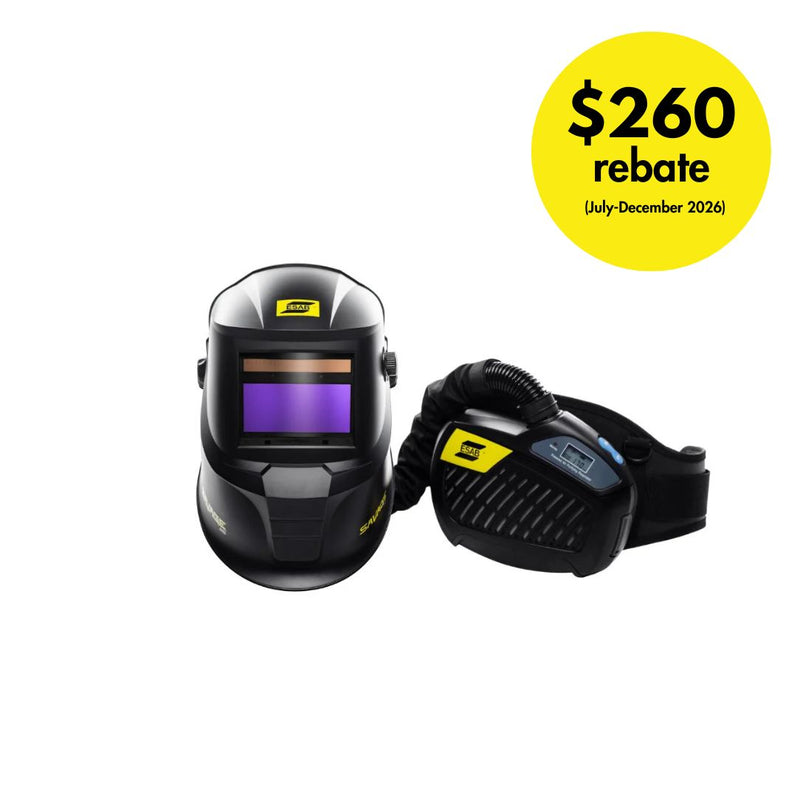

ESAB Savage A40 Welding Helmet with PAPR System

It's official, the ESAB Savage with respirator is officially NIOSH approved and cleared for use in Canada! ESAB part number 0700002400.

The Savage A40 PAPR pairs the advanced features of the Savage A40 welding helmet with a powerful PAPR system designed to filter 99.9% of fine particles from the air during routine procedures. As a fully featured system, welders can now experience optimal True Color with 1/1/1/2 class optical view of the weld pool through a large 100 x 50 mm (3.93 x 1.96 in.) ADF.  The external grind button and knob make it simple to adjust the shade control from 9-13, allowing an easy switch for different welding processes. The Savage A40 PAPR NIOSH-approved welding system represents the features welders need to get the job done quickly, accurately and safely.

Features

  • NIOSH-approved PAPR filtration system delivers three-setting adjustable flow from 170 to 230 liters per minute
  • Convenient push-button interface with easy to read LCD display for PAPR adjustment
  • High efficiency 2 stage filtration system with spark arrestor for added safety
  • LCD display indicating fan speed, flow rate and battery charge level with additional audible alert for low battery
  • High quality shielded air tube with simple connections
  • Fully adjustable PAPR harness and multi-point helmet headgear adjustment for total comfort
  • Four sensor ADF with adjustable shade, sensitivity and delay controls to dial in the precise darkness and reaction speed

Specifications



Lens Viewing Area 3.93 x 1.96 in. (100 x 50 mm)
Lens Shade DIN 4, Adjustable 9-13
Lens Power Supply Replaceable CR2450 battery with solar backup

PAPR Power Supply

4400mAh rechargeable battery, low battery alert
PAPR Airflow Low: 170 lpm / Medium: 200 lpm / High: 230 lpm
Filtration Efficiency HEPA
ADF Lens Sensors 4
ADF Switching Time @ 23°C 0.07ms
Lens Classification 1/1/1/2
Standards NIOSH, ANSI Z87.1, CSA Z94.3, CE EN379, EN175, & AS/NZS 1338.1
Weight 2.97lbs (1350g)
