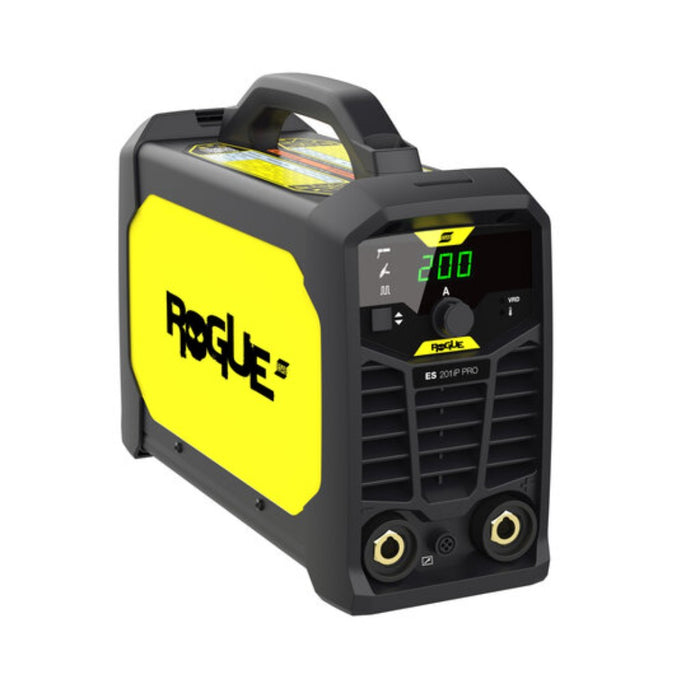

ESAB Rogue ES 201iP PRO Pulsed Stick Welder

Compact, Dual‑Voltage DC MMA (Stick) Welder with Pulse Control & Optional TIG Capability

The Rogue ES 201iP PRO delivers professional‑grade stick welding power in a portable, durable package. With dual‑voltage input and Pulse SMAW technology, this compact powerhouse offers superior control and performance—even when plugged into a generator or used with long extension cables

Features:

• Dual‑voltage input: works on 120 V or 230 V lines with included adapter

• Pulse SMAW mode: reduces heat input, spatter, and distortion—ideal for thin materials and out‑of‑position welds (vertical up with no weave!)

• Precise arc control: digital microprocessor with adjustable Arc Force & Hot Start settings (includes special mode for 6010 rods)

• Generator‑ready: built‑in Power Factor Correction (PFC) ensures stable arc using up to ~300 ft of extension cable on dirty power sources

• Lightweight & portable: approx. 8.3 kg (18 lb) with carry handle and shoulder strap (IP23S-rated for harsh environments)

• Optional TIG-ready: “LIVE TIG” mode allows DC TIG welding (mild & stainless steel) using sold-separately TIG torch

What’s Included at Delivery

• Rogue ES 201iP PRO DC Stick/TIG Power Unit

• 10 ft. Power cable (with 230 V NEMA 6‑50 plug + 115 V adapter)

• 10 ft. Genuine Tweco electrode holder lead (electrode stinger)

• 10 ft. Genuine Tweco ground clamp lead

• Shoulder strap

• 3‑year limited warranty (ESAB Iron‑Clad pledge)

(Note: TIG torch sold separately.)

Why Choose Rogue ES 201iP PRO?

• Reliable power: Stable arc even under fluctuating voltage or long cable runs

• Enhanced weld quality: Pulse SMAW prevents overheating and splatter

• Portable and rugged: Built for shops, mobile setups, or fieldwork

• Versatile: Handle stick welding up to 5/32" rods—and expand later with TIG capabilities

• Trusted support: Backed by ESAB’s 3‑year warranty and Canadian service network

Technical Specs (Quick glance)

• Max stick output: 200 A @ 25% duty (230 V), 110 A @ 25% (120 V)

• Current range: 10–200 A (230 V), 10–140 A (120 V)

• Pulse frequency: 0.2–100 Hz

• IP rating: IP23S

• Weight: ~8.3 kg (18.2 lb), Dimensions: ~403 × 153 × 264 mm

CLICK HERER FOR FULL SPECIFCATION SHEET
