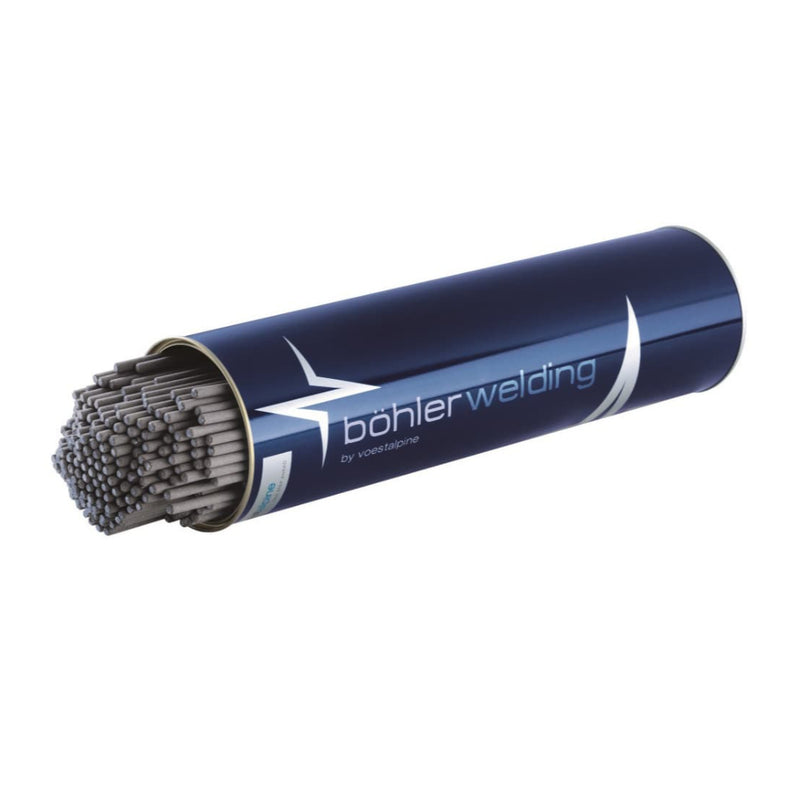

Bohler Fox CN 23/12-A 309L-17 Stainless Steel Stick Electrodes

Bohler 309 Stainless Stick Electrodes

Böhler FOX CN 23/12-A is a rutile E309L-17 stainless steel stick electrode designed for dissimilar metal welding and corrosion-resistant surfacing.

It provides excellent welding characteristics, high current capacity, low spatter, self-releasing slag, and a smooth, clean weld profile. The moisture-resistant coating and hermetically sealed packaging help protect the electrode from moisture.

Features:

• E309L-17 stainless steel electrode
• High delta ferrite content for crack-resistant dissimilar joints
• Suitable for AC and DC welding
• High current-carrying capacity
• Minimal spatter
• Self-releasing slag
• Smooth, clean weld profile
• Moisture-resistant coating
• Hermetically sealed tins
• Suitable for operating temperatures from -60°C to 300°C
• Weld claddings suitable up to 400°C

Typical Applications

• Dissimilar metal welding
• High-strength steel to stainless steel
• Mild and low-alloy steel to stainless steel
• Welding ferritic and austenitic Cr-Ni steels
• Manganese steel applications
• Corrosion-resistant weld surfacing
• Boiler and pressure vessel components
• High-temperature steel applications

Mechanical Properties:

• Yield Strength: 460 MPa typical
• Tensile Strength: 570 MPa typical
• Elongation: 40% typical
• Impact Toughness: 55 J at +20°C
• Impact Toughness: ≥32 J at -60°C

Redrying:

If required, redry electrodes at:

• 120–200°C
• Minimum 2 hours

Sizes Available:

• 3/32" - 2.5mm x 350mm - 4.1kg Can
• 1/8" - 3.2mm x 350mm - 4.4kg Can
• 5/32" - 4.0mm x 350mm - 4.6kg can
• 3/16" - 5.0mm x 450mm - 6.1kg can

Böhler FOX CN 23/12-A is a dependable 309L electrode for demanding dissimilar-metal and stainless surfacing applications.
