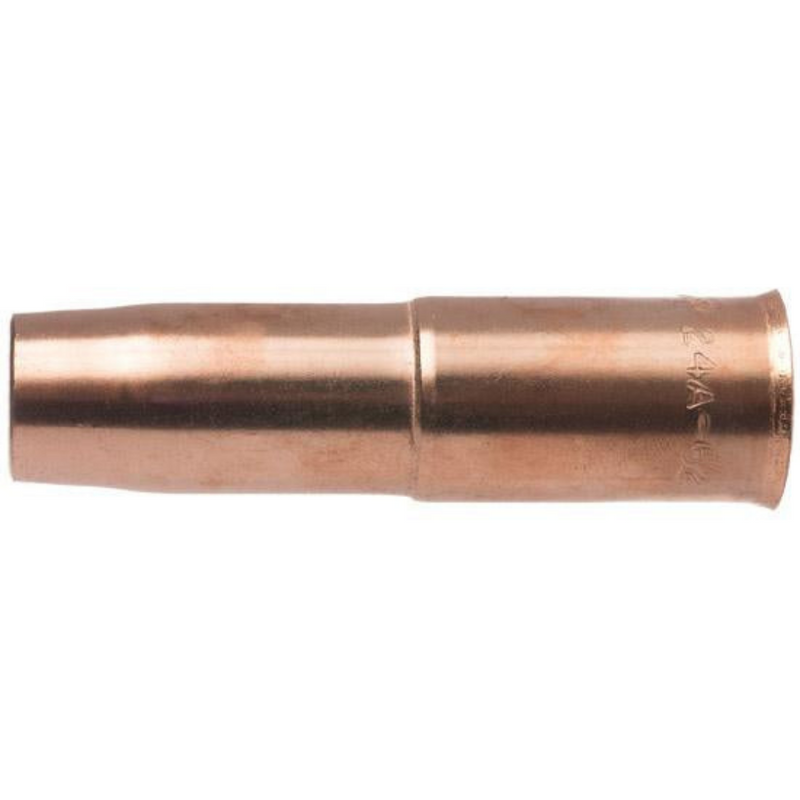

Tweco Style 24A Series Nozzles

Tweco slip on style formed MIG gun nozzles for use with 34A Insulator. This push on style slides over the insulator instead of threading on.

Features:

  • 0.750" (19.05 mm) - outside diameter
  • Heat conductive copper construction
  • More economical since the insulator is not built in to each nozzle
  • Use with Nozzle Insulator Part No. 34A
  • Sold individually

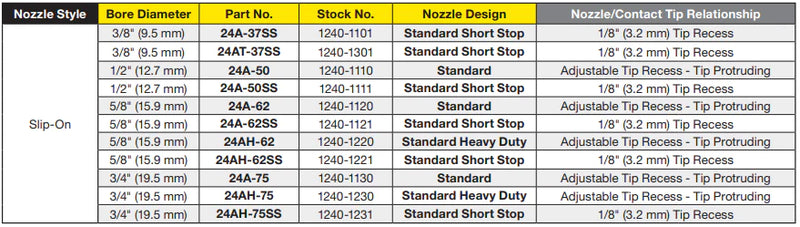

Standard Options:

  • 3/8" (9.5mm) - 24A-37
  • 1/2" (12.7 mm) - 24A-50 - 1240-1110
  • 5/8" (15.9 mm) - 24A-62 - 1240-1120
  • 3/4" (19.5 mm) - 24A-75 - 1240-1130

Heavy Duty Options:

  • 1/2" (12.7 mm) - 24AH-50
  • 5/8" (15.9 mm) - 24AH-62 - 1240-1220
  • 3/4" (19.5 mm) - 24AH-75 - 1240-1230

Standard Short Stop Options:

  • 3/8" Standard Short Stop - 24A-37SS
  • 1/2" Standard Short Stop - 24A-50SS
  • 5/8" Standard Short Stop - 24A-62SS
  • 3/4" Standard Short Stop - 24A-75SS

Heavy Duty Short Stop Options:

  • 1/2" HD Short Stop - 24AH-50SS
  • 5/8" HD Short Stop - 24AH-62SS
  • 3/4" HD Short Stop - 24AH-75SS

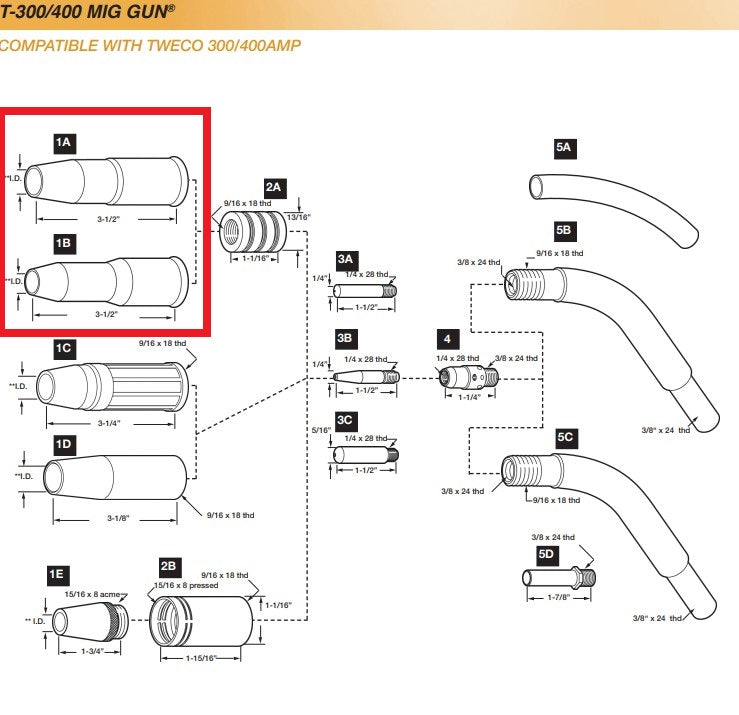

detail drawing of tweco 24A mig nozzle showing dimensions and threads
