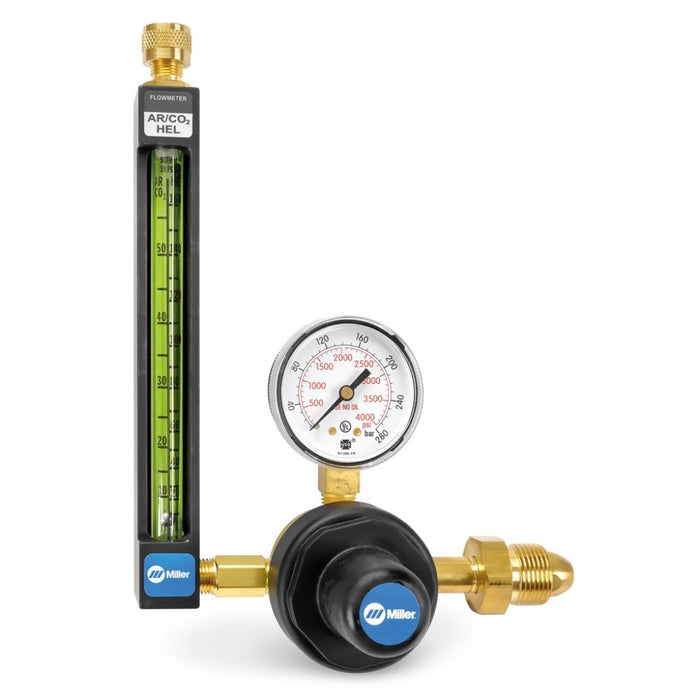

main image of Miller regulator flowmeter showing pressure gauge and flowmeter with AR/CO2 HEL imprinted on it

Miller Argon/CO2/Helium Flowmeter Regulator - 30 PSIG

by Powerweld
SKU MIL22-30-580
$0
$250.00 - $250.00
$250.00
$250.00 - $250.00
$250.00
Availability:
Only 2 left!
Request a quote

Powerweld CGA-680 Argon Regulator-Flowmeter

Rugged heavy-duty industrial-grade regulators provide efficient and accurate regulation, and include our exclusive self-centering flowball. They are constructed with Miller exclusive Sure Seat™ filtered seat technology for extended seat and regulator life. Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime. Filtered seats also reduce CO2 freeze-up. Provides high argon flow capacity up to 55 SCFH.

Product Details:

  • CGA 580 Inlet connection
  • 5/8"-18RH outlet connection
  • 10-55 scfh Flow range Argon/CO2
  • 10-160 scfh Flow range Helium
  • 30 PSIG Pre-set delivery pressure
  • 3,000 PSIG Maximum inlet pressure

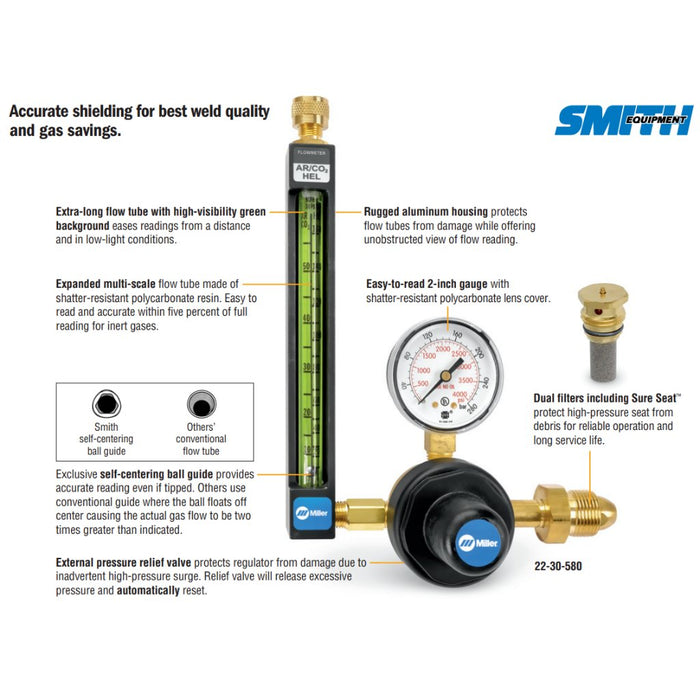

Features:

Sure-Seat™ filtered high-pressure seat assembly

Series 20™ single-stage regulators are extremely durable and contain our exclusive Sure Seat™ filtered seat technology. Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime.

Rugged Protective Flowmeter Housing

Flow tubes are protected from accidental damage while offering unobstructed view of flow reading.

Shatter-Resistant Multi-Scale Flow Tube

Tubes are made of shatter-resistant polycarbonate resin and feature multiple scales.

Unique Self-Centering Ball Guide

Miller-Smith’s exclusive ball-centering flow tube provides accurate flow readings even if tipped. Others use conventional guide where the ball floats off center causing the actual gas flow to be two times greater than indicated.

True Blue Warranty

Flowmeter regulators are covered by the Miller True Blue® 3 YR. warranty.

External Relief Valve

Protects regulator from damage due to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
